Cessna Model 421 Golden Eagle

In October 1965 Cessna announced development of a new pressurised twin-engined business aircraft designated Cessna Model 421, the prototype of which had flown for the first time on 14 October 1965. Derived from the Model 401/411, the Model 421 differed primarily in its original configuration by having a fail-safe pressurised fuselage structure and an AiResearch air-conditioning and pressurisation system. Deliveries of initial production aircraft began in May 1967, following certification of the type on the fist day of that month.

Two new versions of the Model 421 were introduced for 1970, the Model 421B Golden Eagle and Model 421B Executive Commuter. Both had a number of improvements including lengthening of the nose to provide more avionics and baggage capacity, an increase in wing span, strengthening of the landing gear for operation at higher gross weights, and many detail refinements. The Executive Commuter was basically the same as the Golden Eagle, but the interior was laid out with lightweight easily-removable seating to provide alternative passenger/cargo configurations which could accommodate a maximum of 10 passengers. These two versions were replaced in 1976 by the Model 421C Golden Eagle, which introduced some important changes. These included a new wing that dispensed with the distinctive wingtip tanks, replaced by integral fuel tanks of the type introduced at a later date on the Model 414. Other changes provided increased area for the vertical tail surfaces and larger-capacity engine turbochargers. Four versions were available, the Model 421C Golden Eagle and Model 421C Executive Commuter, both produced in Model 421C II, versions with a factory-installed avionics/equipment package.

The Executive Commuter was discontinued for 1978, the Golden Eagle then being available in standard as well as Model 421C II and Model 421C III versions with differing avionics/equipment packages.

By late-1985 when production ceased, 1,909 Golden Eagles of all versions had been delivered, including three examples for the Royal New Zealand Air Force.

3-View

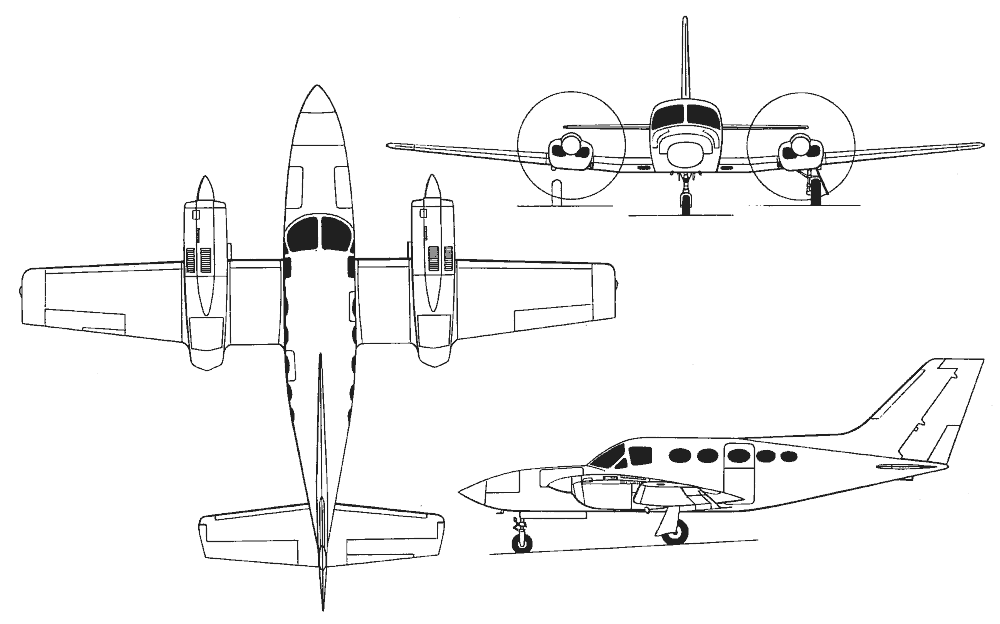

Model 421C Golden EagleA three-view drawing of Model 421C Golden Eagle (1000 x 624)


Specification
 ENGINE2 x Continental GTSIO-520-N flat-six turbocharged piston engines, 280kW
 WEIGHTS
    Take-off weight3379 kg7449 lb
    Empty weight2129 kg4694 lb
 DIMENSIONS
    Wingspan12.53 m41 ft 1 in
    Length11.09 m36 ft 5 in
    Height3.49 m11 ft 5 in
    Wing area19.97 m2214.96 sq ft
 PERFORMANCE
    Max. speed478 km/h297 mph
    Cruise speed356 km/h221 mph
    Ceiling9205 m30200 ft
    Range2752 km1710 miles

Comments
Steve, 07.08.2012

Cessna's best cabin class twin, and fun to fly!

Sharika, 04.07.2012

Does anyone knows about the Air conditioning system of aircraft, The operating coolant in our aircraft is R-12 which is abundant in present day world. Is there any modification for this system. Please let me know.

Larry Ocker, 22.03.2011

The 1981 421C was introduced with trailing link main gear. I flew a 1977 model 421C for 17 years what a great airplane.

Scott Boyd, 23.02.2010

I flew one in 1985 or 86 for a while, one of the last ones. The 425 was one of my favorites, a 421 with a much improved tail and the new gear. The 421 got it pretty quickly but faded fast.

I also flew the Riley conversion of the 421, enough power to go really fast, too bad you had to adhere to the 421 numbers and the top of the green was the red line. The tail was a good part of that, had to be repaired on a regular basis, the 425 took care of that.

Karen Bazdresch, 17.02.2010

I am trying to confirm the year that the Cessna 421C changed from straight legged landing gear to the trailing link gear.

Thank you.

Karen Bazdresch

Anton, 18.12.2007

Hello, your help is necessary to me. You can prompt me in what limits probably преобрести the plane of model Cessna 421, 68 years of release.

Ron, 10.10.2007

1974 421B What is the max landing weight?

Bill Belanger, 17.08.2007

Is there any interior size differences bewteen the 1975 and 1976 model 421s?

Roy Clennan, 25.03.2007

Are there any real speed differences between the 1974/1975 B model and the later c models?
