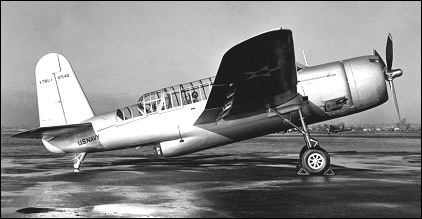

The Consolidated TBY Sea Wolf was a United States Navy torpedo bomber of World War II. A competitor and contemporary to the very similar TBF Avenger, the Sea Wolf was subject to substantial delays and never saw combat; only 180 of the type were built before cancellation.
| MODEL | TBY-2 |
| ENGINE | 1 x 2000hp |
| DIMENSIONS |
| Wingspan | 17.36 m | 56 ft 11 in |
| Length | 11.96 m | 39 ft 3 in |
| Height | 4.73 m | 15 ft 6 in |
| PERFORMANCE |
| Max. speed | 492 km/h | 306 mph |
| Ceiling | 8296 m | 27200 ft |
| Range | 2422 km | 1505 miles |
| ARMAMENT | 4 x 12.7mm + 1 x 12.7mm machine-guns, 907kg of bombs |

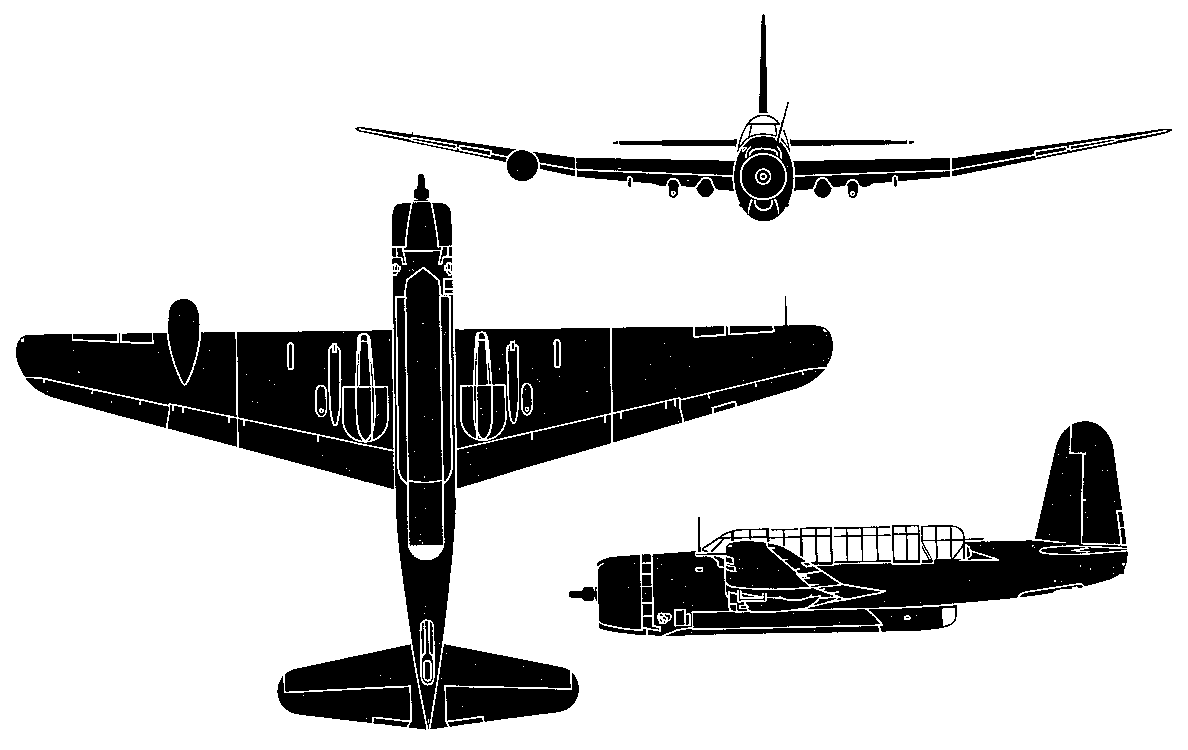

 | A three-view drawing of TBY-2 (1188 x 750) |
|
