Convair 240
1947
Back to the Virtual Aircraft Museum
  PASSENGERVirtual Aircraft Museum / USA / Convair

Convair 240

The first post-World War II commercial transport designed by Consolidated Vultee was evolved primarily as a DC-3 replacement. The prototype first flew at San Diego on 16 March 1947 and the first licensed aircraft was delivered to American Airlines on 28 February 1948. Altogether 176 were built. Accommodation was provided for 40 passengers. The aircraft was powered by two 1,788kW Pratt & Whitney R-2800-CA18 radial engines.

Military versions of the 240 were produced as the T-29A to E aircrew trainers for navigators and bombardiers; and as the C-131A Samaritan personnel or casualty evacuation transport accommodating 37 passengers or 27 stretchers.

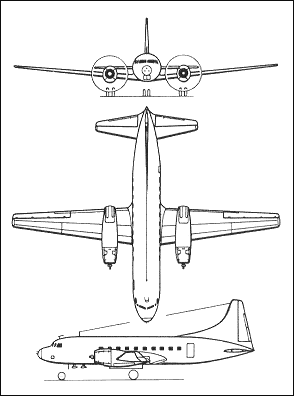

Convair 240


Specification
 CREW3-4
 PASSENGERS40
 ENGINE1 x Pratt & Whitney R-2800-CA18, 1765kW
 WEIGHTS
    Take-off weight18972 kg41826 lb
    Empty weight12530 kg27624 lb
 DIMENSIONS
    Wingspan28.0 m91 ft 10 in
    Length22.7 m74 ft 6 in
    Height8.3 m27 ft 3 in
    Wing area75.9 m2816.98 sq ft
 PERFORMANCE
    Max. speed538 km/h334 mph
    Cruise speed480 km/h298 mph
    Ceiling9150 m30000 ft
    Range w/max.fuel2880 km1790 miles

Comments
Robbie Robbins, robbins293(@)gmail.com, 19.08.2008

Many T-29's were converted to VIP transports in the 1960's. I was a radio operator on ferry crews for VT-29B from Land Air Corp., Cheyenne, Wyoming to Weisbaden AB, Germany in 1963. These planes went to the various American embassies in Europe.
I was the radio operator on VT-29D #25816 in Rio de Janeiro (JBUSMC) 1972-1974 as well.(it replaced our C-54G)

GEORGE MILLER, GPM205(@)PEOPLEPC.COM, 22.07.2008

ANY SUGGESTIONS WHERE I CAN BUY A WOODEN PUT TOGETHER KIT OF THIS WONDERFUL AIRCRAFT? I FIRST MET IT AS A CARGO HANDLER FOR AMERICAN AIRLINES AT OHARE IN LATE 1955 AND HAD A MODEL OF IT THAT HAS LONG SINCE BEEN MISPLACED. LATER I WAS AN OPERATIONS GUY THAT DID THE WEIGHT AND BAL.

w. D. Woodruff, woodycarol(@)verizon.net, 10.06.2008

As honest an airplane you would want to fly. Flew T 29s, c 131s in various configurations and enjoyed all of it.

Bob Quinter, bada48(@)aol.com, 03.05.2008

The U.S. DOD also flew the 131Fs,Gs and Hs(turboprops) with some carrying up to 60 passengers depending upon configuration. Another feature in these aircraft was the cargo door on the port side aft.

Dick Hall, rrhall(@)rtconnect.net, 30.04.2008

As I remember there were several 'upgrades or modifications' to the original airframe/powerplants. Seems that the last 'factory' model was the 580 (?). The major difference was the upgraded power plants, from radial to constant speed engines/props. A later modification comes out of Canada and is listed as the 5800. They've stretched the body by about a dozen feet, upgraded the engines and now produce three versions--all passenger, half passenger, half freight, or all frieght. Last I heard, you could buy one of these truly 'rivet up' re-manufactured birds for about $7 million--in today's market as good a bargain as I've seen lately! Dick

thawkins, thawkins(@)intergirty.com, 23.09.2007

the engine sub-designation was CB-16.
