Convair YB-60

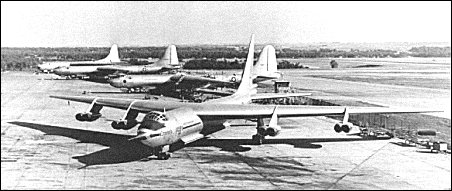

Under the designation XB-36G a turbojet-powered version of the B-36 was proposed; a contract for two prototypes was awarded by the USAF on 15 March 1951, these being allocated the designation YB-60; they retained the basic fuselage of the B-36 with a modified nose and generally similar wing centre-section and landing gear; new swept outer wing panels, a new tail unit and powerplant comprising eight Pratt & Whitney J57 turbojets, pylon mounted in podded pairs forward of the wing leading-edge, distinguished the two YB-60s; the first was flown on 18 April 1952, but the type failed to gain a production contract, the USAF ordering instead the Boeing B-52.

Convair YB-60


Specification
 CREW10
 ENGINE8 x 4080kg J57-P-3
 WEIGHTS
    Take-off weight136200 kg300271 lb
    Empty weight68100 kg150136 lb
 DIMENSIONS
    Wingspan62.79 m206 ft 0 in
    Length52.12 m171 ft 0 in
    Height15.24 m50 ft 0 in
 PERFORMANCE
    Max. speed837 km/h520 mph
    Ceiling13716 m45000 ft
    Range12880 km8003 miles

3-View

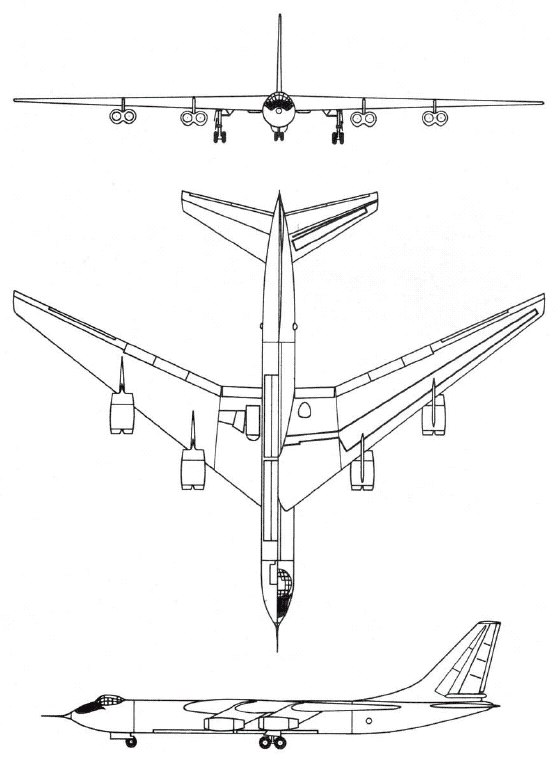

Convair YB-60A three-view drawing (557 x 759)
