Curtiss F8C-1, F8C-3
1928
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / USA / Curtiss

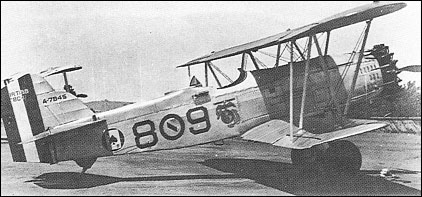

F8C-1

To meet a US Marine Corps requirement for a two-seat fighter with bombing and observation capability, Curtiss adapted the airframe of the USAAC's O-1 Falcon. With a Pratt & Whitney R-1340 Wasp radial engine in place of the water-cooled Conqueror six examples were delivered, two as XF8C-1s and four as F8C-1s, in January 1928. Armament comprised two fixed forwardfiring 7.62mm guns and a weapon of similar calibre on a Scarff ring in the rear cockpit, and power was provided by a 432hp R-1340B Wasp. Twenty-one additional machines (one XF8C-3 and 20 F8C-3s) were delivered later in 1928, these being essentially similar to the F8C-1s which were redesignated as OC-1s shortly after entering service, the F8C-3s becoming OC-2s.


Specification
 WEIGHTS
    Take-off weight1901 kg4191 lb
    Empty weight1141 kg2515 lb
 DIMENSIONS
    Wingspan11.58 m38 ft 0 in
    Length8.51 m28 ft 11 in
    Height3.55 m12 ft 8 in
    Wing area32.52 m2350.04 sq ft
 PERFORMANCE
    Max. speed232 km/h144 mph
    Range1046 km650 miles
