Curtiss XP-10

On 18 June 1928, the USAAC placed a contract with Curtiss for one prototype of the XP-10 single-seat fighter powered by a 600hp V-1570-17 Conqueror engine. Of mixed construction with fabric-covered steel-tube fuselage and plywood-covered wooden wings, the XP-10 placed emphasis on aerodynamic cleanliness and utilised surface evaporation wing radiators and a gulled upper wing. Delivered in August 1928, the XP-10 was tested until October 1930, but continuous problems with the cooling system prevented further development.

3-View

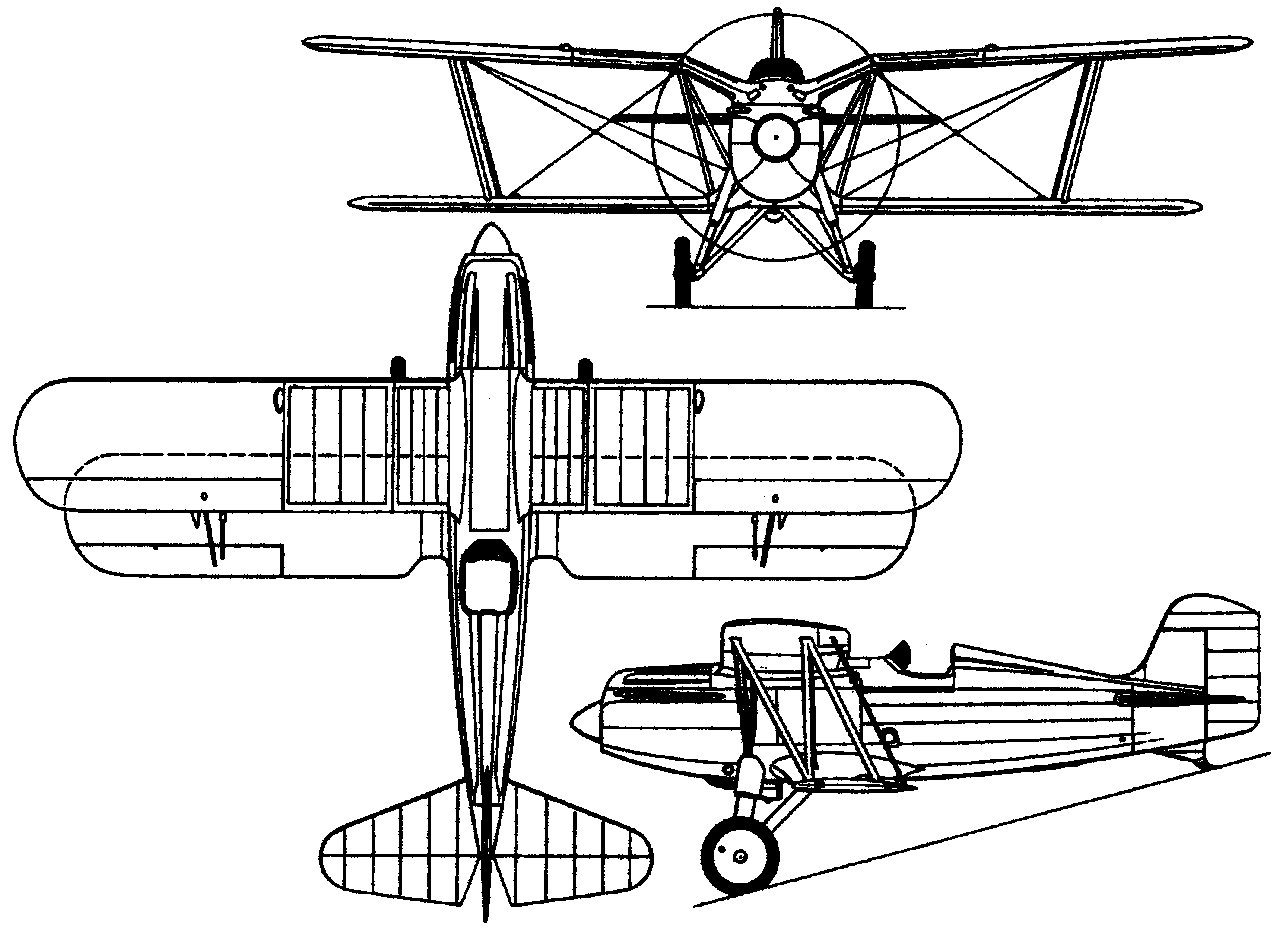

Curtiss XP-10A three-view drawing (1280 x 932)


Specification
 WEIGHTS
    Take-off weight1803 kg3975 lb
    Empty weight1379 kg3040 lb
 DIMENSIONS
    Wingspan10.06 m33 ft 0 in
    Length7.47 m25 ft 6 in
    Height2.64 m9 ft 8 in
 PERFORMANCE
    Max. speed307 km/h191 mph
    Range742 km461 miles
