Douglas A-3 (A3D) Skywarrior

The largest and heaviest aircraft designed for operation from an aircraft-carrier when the Douglas El Segundo division's project design was completed in 1949, the Douglas A3D Skywarrior originated from a US Navy requirement of 1947. An attack bomber with strategic strike capability was envisaged, tailored to the giant new aircraft-carriers that were ultimately (after prolonged opposition from the USAF) to materialise as the 'Forrestal' class of four ships, as it was believed that the moment had come to exploit the potential of the rapidly-developing gas turbine engine.

The Douglas design was a high-wing monoplane, with retractable tricycle landing gear, two podded turbojets beneath the wing, and a large internal weapons bay to accommodate up to 5443kg of varied weapons. The wings were swept back 36° and had high-aspect ratio for long range, all tail surfaces were swept, and the outer wing panels and vertical tail folded.

The first of two prototypes made its maiden flight on 28 October 1952, powered by 3175kg Westinghouse XJ40-WET3 engines, but the failure of this engine programme meant that the 4400kg thrust Pratt & Whitney J57-P-6 powered the production A3D-1. The first of these A3D-1s flew on 16 September 1953, and deliveries to the US Navy's VAH-1 attack squadron began on 31 March 1956.

In 1962 the designation was changed to A-3, the initial three-seat production version becoming A-3A. Five of these were modified subsequently for ECM missions under the designation EA-3A. The A-3B (previously A3D-2) which entered service in 1957 had more powerful J57-P-10 engines and an inflight-refuelling probe. A reconnaissance variant with cameras in the weapons bay was designated RA-3B (A3D-2P), and EA-3B (A3D-2Q) identified ECM aircraft with a four-man crew in the weapons bay. Other designations include 12 TA-3B (A3D-2T) trainers for radar operators, one VA-3B (A3D-2Z) executive transport, and the final variants in front-line US Navy service were KA-3B inflight-refuelling tankers and 30 EKA-3B tanker/counter-measures/strike aircraft. Skywarrior variants still in service include TA-3B crew trainers, EKA-3B early-warning 'aggressor' trainers, and KA-3B tankers with Squadrons VAQ-33 at Key West and VAQ-34 at NAS Point Mugu, together with an NA-3B test aircraft operated by the Naval Weapons Test Center and NRA-3Bs with the Pacific Missile Test Center.

A3D-1 Skywarrior


Specification
 MODELA-3B
 ENGINE2 x Pratt & Whitney J57-P-10 turbojets, 4763kg each
 WEIGHTS
    Take-off weight37195 kg82001 lb
    Empty weight17876 kg39410 lb
 DIMENSIONS
    Wingspan22.10 m73 ft 6 in
    Length23.27 m76 ft 4 in
    Height6.95 m23 ft 10 in
    Wing area75.43 m2811.92 sq ft
 PERFORMANCE
    Max. speed982 km/h610 mph
    Cruise speed837 km/h520 mph
    Ceiling12495 m41000 ft
    Range1690 km1050 miles
 ARMAMENT2 x 20mm rear-firing cannon, 5500kg of bombs

3-View

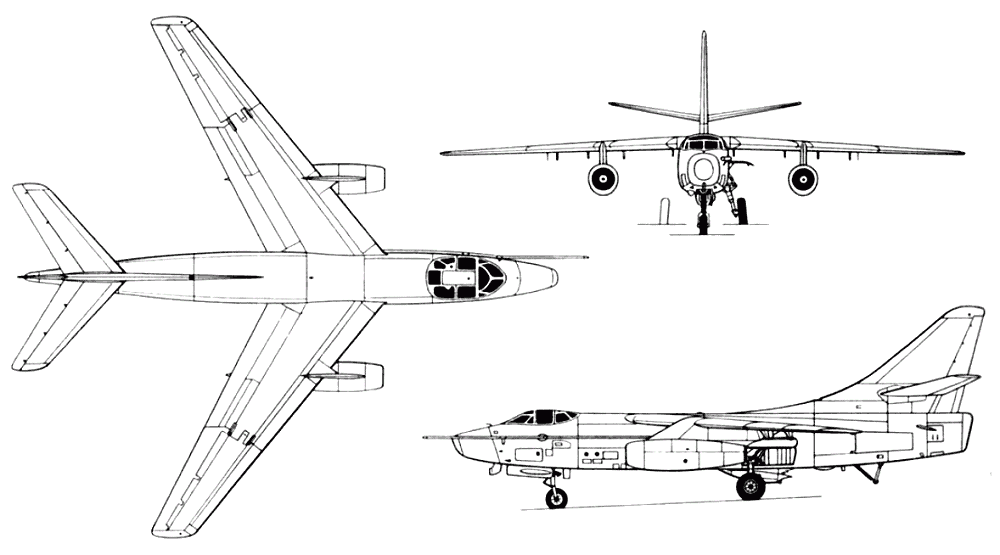

TA-3B SkywarriorA three-view drawing of TA-3B Skywarrior (1000 x 555)
