Douglas BT
1930
Back to the Virtual Aircraft Museum
  TRAINERVirtual Aircraft Museum / USA / Douglas

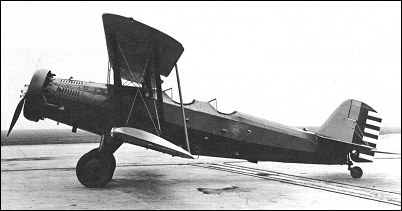

BT-2B basic trainer

The excellent flight characteristics of the Douglas O-2 family led to the conversion of 40 O-2Ks in 1930 as basic trainers for the US Army. Dual controls were installed and armament was deleted, the modified aircraft then being designated Douglas BT-1. The only O-32 to be built was given dual controls, also in 1930, and became designated BT-2. Thirty O-32As were modified similarly to the O-2Ks; used by US Army and National Guard units for basic training these were redesignated BT-2A. Some 146 BT-2B aircraft were built as such, the first appearing in 1931. Powered by the 336kW Pratt & Whitney R-1340-11 radial, they survived many years in basic training units.


Specification
 ENGINE1 x Pratt & Whitney R-1340-11 radial piston engine, 336kW
 WEIGHTS
    Take-off weight1845 kg4068 lb
    Empty weight1324 kg2919 lb
 DIMENSIONS
    Wingspan12.19 m40 ft 0 in
    Length9.5 m31 ft 2 in
    Height3.3 m11 ft 10 in
    Wing area33.63 m2361.99 sq ft
 PERFORMANCE
    Max. speed216 km/h134 mph
    Cruise speed188 km/h117 mph
    Ceiling5850 m19200 ft
    Range515 km320 miles

Comments
David Brown, 02.08.2015

Hello,
My grandfather trained with the bt2b and I have an old picture of him getting into the plane. I was wanting to change it from black and white to color but can't find any info on what the color of the plane was. I've see similar that were blue and yellow but wasn't sure for the Air Corp training BT-2B. Thanks for any information you have! I'm trying to surprise my family with coloring some of his WW2 pictures. Thanks. David
