Fairchild FH-227

1958

Back to the Virtual Aircraft Museum
  PASSENGER AIRCRAFTVirtual Aircraft Museum / USA / Fairchild

Fairchild FH-227

In April 1956 Fokker in the Netherlands concluded an agreement with Fairchild for manufacture of the F27 Friendship then under development in Holland. Thus Fairchild became responsible for production and marketing in North America of the F27 series of aircraft that corresponded to some of those built by the Dutch company. However, when Fokker developed a 'stretched' version known as the F27 Mk 500, Fairchild decided to design its own version with a lengthened fuselage and this was identified as the Fairchild Hiller FH-227.

The FH-227 differed from the standard F27 by having a fuselage 'stretch' of 1.83m to provide accommodation for a maximum of 52 passengers, with increased baggage and cargo space, and by the installation of 1678kW Rolls-Royce Dart RDa.7 Mk 532-7 turboprop engines. The first of two FH-227 prototypes made its initial flight on 27 January 1966. Production of FH-227s and their variants had reached 79 when production ended. About 30 FH-227s of different marks remained in airline service in 1991.

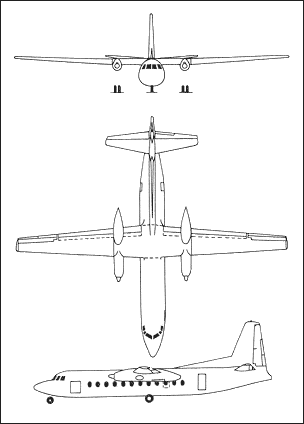

Fairchild FH-227

Specification
 CREW2-3
 PASSENGERS44-56
 ENGINE2 x turbo-prop Rolls-Royce RDa-7 Mk.532, 1655kW
 WEIGHTS
  Take-off weight20640 kg45504 lb
  Empty weight12478 kg27509 lb
 DIMENSIONS
  Wingspan29.0 m95 ft 2 in
  Length25.5 m84 ft 8 in
  Height8.4 m28 ft 7 in
  Wing area70.0 m2753.47 sq ft
 PERFORMANCE
  Max. speed483 km/h300 mph
  Range w/max.fuel2500 km1553 miles
  Range w/max payload800 km497 miles

Comments
Vince Sbardella, e-mail, 10.07.2020 18:47

Flying in the right seat of the FH-227 was a two year experience for me, and my first exposure to turbine engines, ( Oct. 1966 to Sept 1968)between the piston powered Convair 240s & 440s and the Bac 1-11 turbojet, at Mohawk Airlines. I recall being impressed the most, with the drastically reduced cockpit workload, an important factor in, commonly, an 8 -10 segment day. Absent were the prop controls, mixture settings, carburetor heat, manifold pressure and cylinder head temperature gauges, augmenter vanes, blowers, etc. As the captain on my first line trip commented, "Isn't this great? You just push the throttles to go up and pull them back to go down".

reply

Vincent van Huijstee, e-mail, 27.10.2017 19:29

The F27 and F28 as well as the follow-ups, the F50 and F100 were great planes built by the Dutch Fokker Aircraft Company. In the beginning of the Fokker Company about 90% of everything that flew around the globe, came from the Fokker Aircraft Company.........

reply

Richard Neyland, e-mail, 04.04.2017 06:23

My first flight on one of these great airplanes was on an Ozark FH-227B, N4218, from St. Louis to Kansas City with a stop in Columbia, back in 1971 while I was serving in the Air Force. Today I am building a model of this same aircraft with the use of 2 Revell kits (1 /94 scale). Can anyone tell me what that small square object on the dorsal fin near the leading edge of the vertical stabilizer is? Not prevalent on the F-27 series, I am assuming that it's a housing for the flight data recorders.

reply

Jörg P. A. Thomsen, e-mail, 21.07.2015 14:51

Dear All,
first of all, I wish to thank you for this page and the opportunity to read such valuable comments. I only flew once with a F227 from Asunción to Montevideo, back in 1977. I agree with Ron Watts comments. As the curator and director of the museum about the Tragedy /miracle in the Andes of 1972 (www mandes uy) I would say that thanks to the plane´s design, there were survivors. Please see the movie and /or the book "Alive"

reply

Andy Skiba, e-mail, 10.02.2015 02:35

I flew the F-27J for Allegehny Airlines in the mid 60's. great airconditioning in the summer. but a dog when it was hot( high field density). 54%redux bonding construction made it stiff and strong gave a rough ride in turbulence...
The neumatic system was supposed to be fail safe but we had a total system failure right out of maintenance including the emergency system which wasn't supposed to happen. Had to manually crank the gear down and fly with it extended back to our maint base....not a
great airplane but not a bad one either....

reply

Walter, e-mail, 17.11.2014 11:02

This airplane has a devastating safety-record

reply

Bob Wallace, e-mail, 02.07.2014 15:18

I flew the FH227 on the DEW line in the early 70's. We operated from gravel strips to resupply the radar sites. A definite step up from the DC3's and the C46's.In warm weather (+20c or higher) we would from time to time use the water meth injection for t /o. The gear was pneumatically operated.If there was any moisture in the lines in the winter (-50c or lower),the gear could freeze in the up position.The company modified the system with a standby 3000 psi nitrogen bottle with a separate set of lines which could be used to lower the gear if this situation happened (only once that I know of).Operating in the arctic in shirt sleve comfort was a very nice experience.

reply

Ted Goater, e-mail, 21.06.2014 07:49

Flew just about every model of the F27 built, 100 /200 /500 /227 logging just over 3000 command hours, many as an instructor and check pilot. My favourite was the 227, mainly because it had an APU. A bit noisy, but otherwise a good aircraft to fly.

reply

Leroy McVay, e-mail, 16.10.2013 19:24

1957(?) FAA examiner and pilot making insturment landings at night at Salt Lake. Using early version of radio altimiter. Thought they had lots of altitude; forgot they were banked over in turn. Older units broadcast the signal straight down from a /c. Banked over they didn't realize they were too low. Flew into lake, lost both pilots.

reply

John D, e-mail, 13.03.2013 20:17

I worked at Dowtys in the '60's and tested the main undercarriage every time Fairchild increase the landing weight of the aircraft!

reply

Ramsey.watson, e-mail, 11.06.2012 14:40

Do you guys have any pics of this aircraft?

reply

Dane Hays, e-mail, 09.03.2012 17:14

Bill Roll could have added that before West Coast & Air West, Bonanza Airlines (which also merged into Air West) converted their entire fleet of DC-3s to F-27s overnight around 1960. My dad was one of their station mgrs. I flew on one of the route inaugural flights & then on the first DC-9 inaugural when they switched to them.

reply

Bill Roll, e-mail, 22.02.2011 07:06

I started flying the F-27 for West Coast Airlines in 1966 which became Airwest then Hughes Airwest. I can remember carrying lots of ice with that bird over the mountains in the Pacific NW over the 8 years I flew it! I have a soft spot for the F-27 since it was the first aircraft I flew as an airline Captian at age 27.

reply

Albert Neal, e-mail, 19.01.2011 23:36

Any aircraft that gets you safely to your destination is a good aircraft...at least for that trip. The Fairchild 227 is considered underpowered, especially for routes involving mountain airports or high density altitude work. Aircraft of this type, are worked hard on short routes. They also have to operate in the worst altitudes for bad weather, and have the lowest technology in terms of de-icing equipment.

reply

Bob Leonard, e-mail, 26.10.2010 01:05

F-27 /FA-227 co-pilot in 1972, typed 1973 at Piedmont Airlines.
My first larger aircraft...lots of respect for its power and flight characteristics. Enjoyed flying it once I got engine and prop management learned. Nice large windows which gave good views for the passengers but the forward part of the cabin received strong noise from the two Rolls Royce Dart engines. Operated in and out of several 4,000 ft. runways daily during warm summer months. A stable approach (on ref speed)was required. The Dart engines made lots of noise. All in all, a good flying aircraft which you treated with respect.

reply

Ron Watts, e-mail, 24.04.2010 01:28

In 1968 I was a passenger on an FH-227, flying from Fayetteville, Arkansas, to Atlanta, Georgia, on an interview trip to the East coast. Night had fallen as we approached Atlanta, and the incredible windows, which extended down to seat level, provided me the most magnificent view of the city I had ever seen before or since. With the wings at the top of the fuselage there was absolutely no impediment to viewing the dazzling display resembling thousand of miniature Christmas tree lights. Even the landing was exceptional, since you seemed to be only six feet above the tarmac, and the impression of speed during landing was truly realistic. I don't remember ever having such a wonderful flying experience, and nothing we have today in the way of passenger jets even comes close. Today you are simply in a tiny metal box with limited or no view and little feeling for what is actually happening outside. The FH-227 is and will always be my favorite passenger airplane of all time.

reply

J Mallard, e-mail, 20.01.2010 21:52

www.jetpiedmont.com /gallery /?AC=227

reply

Mike Boyette, e-mail, 20.01.2010 19:38

I flew a corporate version of the F-27 for 4 years, and it
is still my favorite aircraft over a career of more than
50 years. It's unbelieveable what this airplane is capable
of.

reply

RAFAEL, e-mail, 11.01.2009 03:29

Este modelo o fh 227 foi aquele mesmo do acidente nos Andes em 72, pertencente a força aerea do Uruguai o avião foi fretado por um time de rugbi depois de 72 dias desaparecido 2 passageiros conseguiram o socorro 16 das 45 pessoas a bordo sobreviveram. A causa do acidente foi um erro grotesco do piloto,como gosto de avião e fiquei curioso em perquisar sobre este modelo

reply

Santos Gabriela, e-mail, 03.02.2007 17:05

Hello, I study Aeronautic in UNLP(Argentina )and I NEED the appraching speed of F-27FRIENDSHIP ,F-28MK 1000 ,THANK YOU !!

reply
