North American YF-107 Ultra Sabre

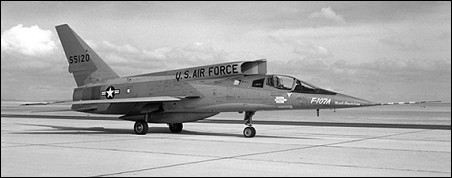

The North American F-107, or company NA-212, was the last USAF fighter to bear this famous manufacturer's name. Originally designated F-100B, it was an all-weather fighter-bomber version of the F-100 powered by a 10660kg thrust Pratt & Whitney YJ75-P-9 turbojet fed via an air inlet above and behind the cockpit, so positioned to create space in the nose for radar. Design work began in June 1953 and a year later the USAF ordered nine aircraft (55-5118/5126), although only three were actually completed. In 1955, the F-107 lost out to the Republic F-105 in a paper competition even though it had not yet flown and its competitor did not, then, have all-weather capability. Thus, the future of the F-107 was already clouded on 10 September 1956 when Robert Baker made the first flight at Edwards AFB, California, in the first of three service-test YF-107As.

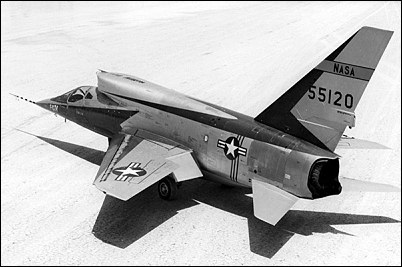

Considering the early difficulties encountered by other 'century series' fighters, the YF-107A was relatively troublefree and might well have played an important role in the Tactical Air Command. But despite good performance, the three YF-107As were soon relegated to permanent test status. Features of the aircraft warranting further evaluation included a flush centre-line fuel tank mounted in the indented fuselage bottom, spoilers on the wing surface instead of ailerons, and a one-piece all-moving rudder, later adopted on the A-5 Vigilante attack bomber. The first YF-107A eventually found itself in a scrap heap, the second is now on display at the Air Force Museum in Dayton, Ohio, and the third was lost in a crash landing while on loan to NACA.

North American YF-107 Ultra Sabre


Specification
 MODELYF-107A
 ENGINE1 x 1xPratt & Whitney J-75-P-9, 93.0kN
 WEIGHTS
    Take-off weight22204 kg48952 lb
    Empty weight16852 kg37152 lb
 DIMENSIONS
    Wingspan11.2 m37 ft 9 in
    Length18.5 m61 ft 8 in
    Height6.0 m20 ft 8 in
    Wing area39.7 m2427.33 sq ft
 PERFORMANCE
    Max. speed2200 km/h1367 mph
    Range1900 km1181 miles
 ARMAMENT4 x 20mm cannons, 4540kg of weapons

3-View

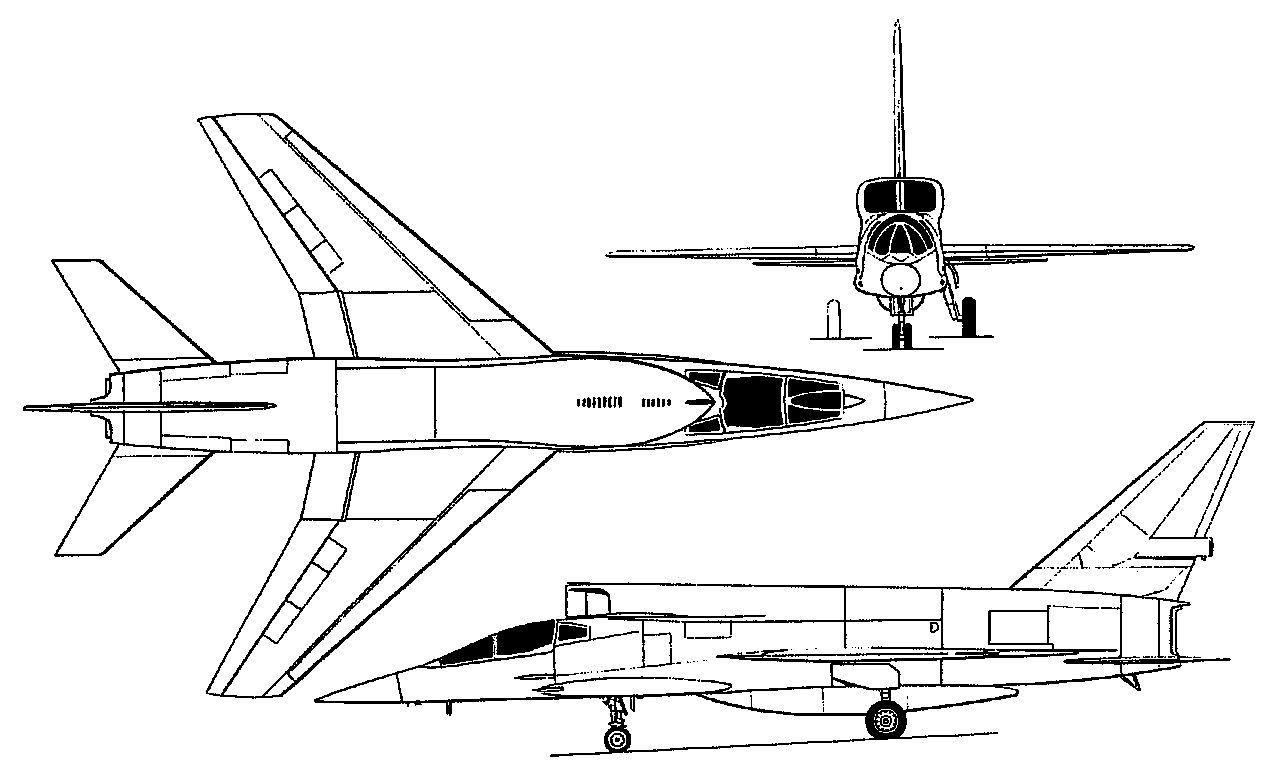

North American YF-107 Ultra SabreA three-view drawing (1278 x 780)
