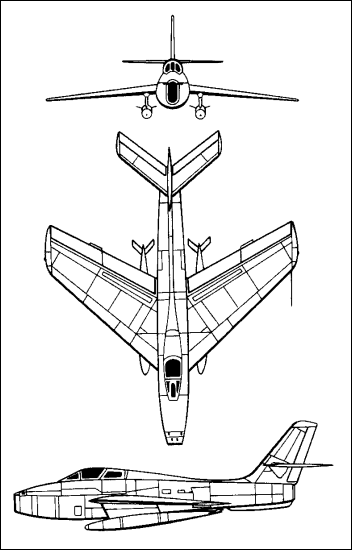

A swept-wing modification of the F-84. The first prototype flew on June 3, 1950. A total of 2713 aircraft were built.
| MODEL | F-84F |
| CREW | 1 |
| ENGINE | 1 x Wright J65-W-3 turbojet, 15.7kN |
| WEIGHTS |
| Take-off weight | 12700 kg | 27999 lb |
| Loaded weight | 6273 kg | 13830 lb |
| DIMENSIONS |
| Wingspan | 10.24 m | 33 ft 7 in |
| Length | 13.23 m | 43 ft 5 in |
| Height | 4.39 m | 14 ft 5 in |
| Wing area | 30.19 m2 | 324.96 sq ft |
| PERFORMANCE |
| Max. speed | 1118 km/h | 695 mph |
| Ceiling | 14000 m | 45950 ft |
| ARMAMENT | 6 x 12.7mm machine-guns, 2700kg of bombs |
