Vought SBU

1933

Back to the Virtual Aircraft Museum
  TWO-SEAT SCOUT-BOMBERVirtual Aircraft Museum / USA / Vought

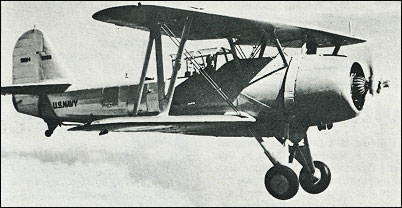

Vought SBU

First flown in May 1933, the Vought XF3U-1 prototype was designed and built to meet a US Navy requirement for a two-seat fighter biplane, and was powered by a 522kW Pratt & Whitney R-1535-80 engine. However, after completion of testing, the company was requested to modify this conventional aircraft into a scoutbomber under the designation XSBU-1, which differed from the XF3U-1 by having strengthened wings of increased area, greater internal fuel capacity and provision to carry a 227kg bomb beneath the fuselage. Following further tests from June 1934, an order was placed for 84 production SBU-1 aircraft, and deliveries began on 20 November 1935. Generally similar to the prototype, these were followed by the SBU-2 (40 built) which differed by introducing the 559kW R-1535-98 engine. The XSBU-1 prototype was converted for use as an engine testbed, and under the company designation V-142A a small number were built for export to Argentina. The last biplane to be designed and built by Vought for the US Navy, the type was still in service with the US Navy Reserve in 1941.

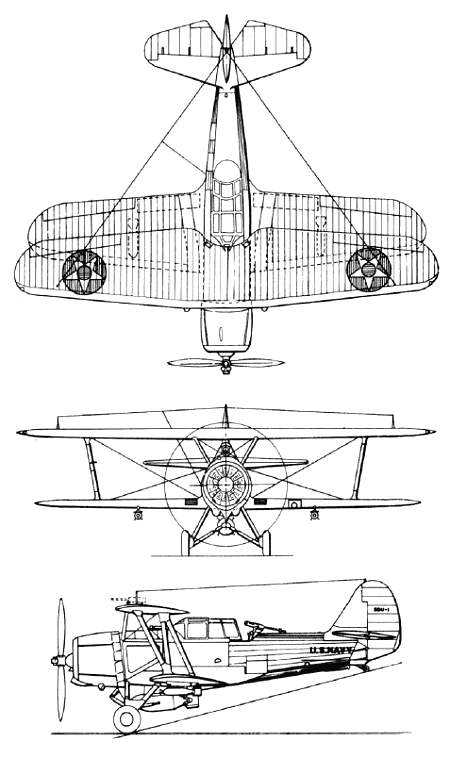

Vought SBU

Specification
 MODELSBU-1
 DIMENSIONS
  Wingspan10.13 m33 ft 3 in
 PERFORMANCE
  Max. speed330 km/h205 mph
 ARMAMENT2 x 7.62mm machine-guns, 227kg of bombs

Comments
Leo Rankin, e-mail, 14.09.2010 12:35

Was flown by VS-3 from the USS Saratoga in 1939 A scouting squadron also performed dive Bombing later replaced by SBC-3 Curtiss Dive Bomber with split flaps only problem the split dive flaps had to be cranked open and closed by a hand crank and it took longer for you to get away from ground fire. !
