Back Bell Model 204 "Iroquois"
1956

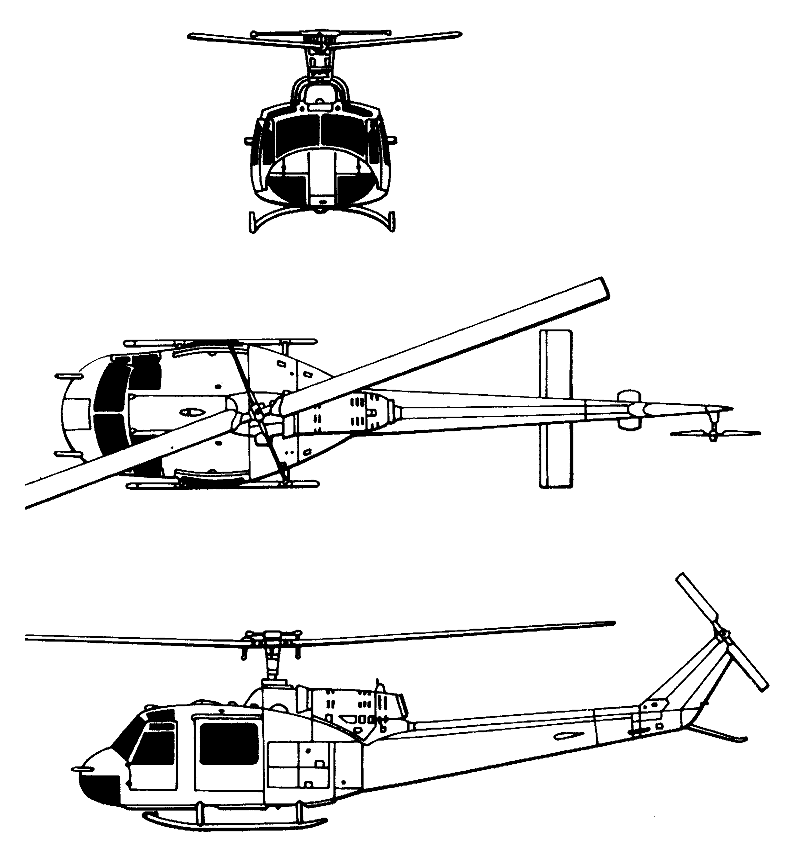

Bell 204

In 1955 the Bell Model 204 won a US Army design competition for a utility helicopter suitable for front-line casualty evacuation, general utility and instrument training duties. The production version was originally designated HU-1, but this was subsequently changed to UH-1. The official US Army name for the helicopter is Iroquois.

The first of three XH-40 prototypes flew on 20 October 1956 and was followed by six YH-40 service test models and nine UH-1 pre-production models. The initial production version was the UH-1A Iroquois. The variants are listed below:

  • UH-1A Iroquois - initial production version powered by one Lycoming T53-L-1A turbo-shaft engine, derated to 770shp. Deliveries began to the US Army in June 1959. Thirteen modified to carry 70mm rockets and two 7.62mm machine-guns for service in Vietnam with the Utility tactical Transport Helicopter Company.

  • UH-1B Iroquois - development of the UH-1A powered initially by one 960shp T53-L-5 turboshaft engine. Subsequent deliveries with 1100shp Lycoming T53-L-11 engine. Crew of two plus seven troops or three stretchers and two sitting casualties. Alternatively 1360kg of freight. For armed support missions could be equipped with rocket pack and electrically controlled machine-guns. Delivered from March 1961.

  • UH-1C Iroquois - developed version of the UH-1B. New rotor with blades of increased chord offering higher speed and better manoeuvrability. Superseded UH-1B for the US Army, but was itself superseded by the Huey Cobra.

  • UH-1E Iroquois - similar to UH-1B for US Marine Corps. Pilot and eight troops or 1815kg of cargo. Could carry rockets and machine-guns.

  • UH-1F Iroquois - based on UH-1B. Twenty-five ordered by USAF for missile site support duties. Powered by General Electric T58-GE-3 turboshaft engine, derated to 1100shp and driving a 14.63m rotor. Pilot and ten passengers or 1815kg of cargo. First delivered in February 1964. Used for classified psychological warfare missions in Vietnam.

  • TH-1F Iroquois - training version of UH-1F for USAF.

  • HH-1K Iroquois - SAR version for US Navy. Twenty-seven ordered and delivered in 1970. Powered by T53-L-13 engine.

  • TH-1L Iroquois - training version for US Navy, similar to UH-1E. Powered by T53-L-13 turboshaft, derated to 1100shp. Improved electronics. Forty-five ordered in 1968.

  • UH-1L Iroquois - utility version of TH-1L for US Navy. Eight ordered; delivered in 1969.

  • UH-1M Iroquois - US Army version fitted with Hughes Aircraft Iroquois night fighter and night tracker system to detect and acquire ground targets under low ambient lighting conditions. Three deployed with hunter-killer helicopter groups in Vietnam in 1970 to evaluate system.

  • RH-2 - one UH-1A used as flying laboratory research vehicle.

  • Model 204B - commercial and military export version of UH-1B with ten seats, 1100shp T5311A turboshaft engine and 14.63m rotor. Baggage compartment in tailboom. Over 60 commercial 204Bs delivered by end of 1967, in addition to military deliveries.

    UH-1P Iroquois Similar to UH-1F but used for special missions.

  • Agusta-Bell 204B - utility helicopter, similar to Iroquois, produced under licence in Italy from 1961 to 1974 and sold to military and civil customers. By end of 1973 about 250 delivered, including the AB 204AS version for the Italian and Spanish navies, armed with two Mk.44 homing torpedoes or AS.12 air-to-surface missiles depending on anti-submarine search and attack or anti-fast surface vessel role.

M.Taylor "Jane's Encyclopedia of Aviation", 1989

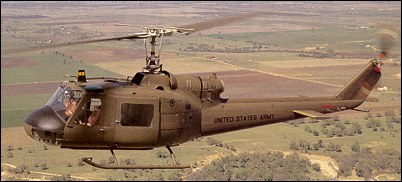

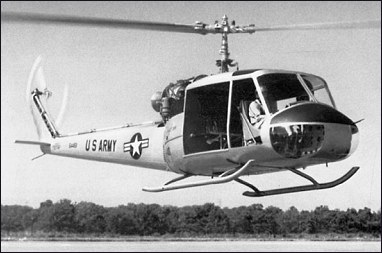

Bell XH-40 prototype

In 1955 the US Army initiated a design competition to speed the procurement of a new helicopter suitable for casualty evacuation, instrument training, and general utility duties. In June 1955 the US Army selected the Bell Helicopter Company's proposal, this having the company designation Bell Model 204. The new helicopter was known initially to the US Army as the H-40, changed to HU-1 when it entered service, and given the name Iroquois. It was also the first of the 'Hueys', a nickname evolved from the HU-1 designation which, in 1962, was altered to UH-1 under the tri-service rationalisation scheme.

The US Army's first order was for three prototypes for testing, under the designation XH-40, the type having the H-40 designation allocated to it at that time to identify it in the USAF helicopter category. The first of these prototypes made its first flight on 22 October 1956, and these were used by Bell for test and development. Just before the first flight, six examples of the pre-production YH-40 were ordered, all being delivered by August 1958. One remained with Bell, but the remainder were distributed one each to Eglin AFB and Edwards AFB, and three to Fort Rucker, for trials. Duly ordered into production, nine of the definitive pre-production HU-1A were delivered on 30 June 1959, and were followed into service by 74 production examples, of which 14 went to the Army Aviation School at San Diego. The latter aircraft had dual controls and were used as instrument trainers. First major use overseas was with the 55th Aviation Company in Korea, and HU-1As were among the first US Army helicopters to operate in Vietnam.

The Model 204 displayed its Bell parentage in the stabilising bar above and at right angles to the two blades of the main rotor, and also by the small elevator surfaces attached to the rear fuselage. Tubular skid-type landing gear was ideal for utility operations. Accommodation was provided for a crew of two and six passengers or two stretchers. Powerplant consisted of a 522kW Avco Lycoming T53-L-1A turboshaft, and this made the Model 204 the first turbine-powered aircraft, rotary- or fixed-wing, to be ordered by the US Army.

The HU-1A was followed into service by the improved HU-1B, of which more than 700 were built, early production having the 716kW Avco Lycoming T53-L-5 engine, and late production models the 820kW T53-L-11 engine. Other improvements in the HU-1B included redesigned main rotor blades, and an enlarged cabin to accommodate a crew of two, plus seven passengers or three stretchers. In the autumn of 1965 the UH-1B was superseded in production by the UH-1C, which had an improved 'door-hinge' rotor with wide-chord blades, this new main rotor conferring some increase in speed and improved manoeuvrability. A few UH-1As operating in Vietnam were equipped with rocket packs and two 7.62mm machine-guns for use in a close-support role, and the success of these resulted in many UH-1Bs serving in a similar capacity, armed mainly with four side-mounted 7.62mm machine-guns, or two similarly-mounted packs, each containing 24 rockets. Other military versions of the Model 204 include the UH-1E for the US Marine Corps (generally similar to the UH-1B, but equipped with a personnel hoist, rotor brake and special avionics). The first being delivered to the Marine Air Group 26 on 21 February 1964, and from October 1965 Bell's new 'door-hinge' rotor being fitted to production aircraft; the UH-1F for the USAF, generally similar to the UH-1B but with a 962kW General Electric T58-GE-3 turboshaft, increased-diameter rotor, and able to accommodate a pilot and 10 passengers; a similar TH-1F training version of the above, for the USAF; the HH-1K SAR version for the US Navy, similar to the UH-1E but with 1044kW T53-L-13 engine; TH-1L and UH-1L training and utility versions respectively of the UH-1E with T53-L-13 engine; and three of the UH-1M with night sensor equipment for evaluation by the US Army.

The Model 204B was built in small numbers by Bell, for civil use and military export. Generally similar to the UH-1B, these were of 10-seat capacity, had the larger-diameter rotors of the UH-1F, and the T53-L-11 engine. Model 204Bs and UH-1s have been built by Fuji in Japan, under sub-licence from Mitsubishi, and in 1967 this company introduced the Fuji-Bell 204B-2, which differs from the Model 204B by having a more powerful engine and a tractor tail rotor. Agusta in Italy is another of Bell's licencees, and has built the Model 204B in large numbers for both civil and military use, many powered by Rolls-Royce Gnome turboshaft engines.

D.Donald "The Complete Encyclopedia of World Aircraft", 1997

Bell 204

In 1955, the Bell Model 204 won a US Army design competition for a utility helicopter suitable for front-line casualty evacuation, general production version was originally designated HU-1, giving rise to the nickname 'Hueycopter', which survived the change of designation to UH-1. Official US Army name for the UH-1 series is Iroquois.

VERSIONS

HH-1K: Sea-air rescue version for US Navy, which placed a contract for 27 late in 1968, for delivery in 1970. The aircraft has the UH-1E airframe, T53-L-13 turboshaft engine (derated to 820kW) and revised avionics.

RH-2 (Research Helicopter 2): One UH-1A was used as a flying laboratory for new instrument and control systems. Installations included an electronic control system and high-resolution radar in a large fairing above the flight deck, enabling the pilot to detect obstacles ahead of the aircraft in bad visibility.

TH-1F: Training version of UH-1F for USAF.

TH-1L: Training version for the US Navy. Similar to UH-1E but with 1,044kW Lycoming T53-L-13 turboshaft (derated to 820kW) and improved electronics. Contract for 45 received 16 May 1968; the first of these was delivered to the US Navy at Pensacola, Florida, 26 November 1969.

UH-1: Nine preproduction models.

UH-1A: Initial production version, incorporating changes requested as a result of service testing. Six-seater, powered by a 641kW Lycoming T53-L-1A turboshaft engine, derated to 574kW. Deliveries to the US Army began 30 June 1959 and were completed March 1961. Thirteen, operated by utility Tactical Transport Helicopter Company in Vietnam, were modified to carry 16 x 70mm air-to-surface rockets and two 7.62mm machine guns. A total of 14 was delivered for use as helicopter instrument trainers with dual controls and a device for simulated instrument instruction.

UH-1B: Development of UH-1A, initially with 716kW T53-L-5 turboshaft. Subsequent deliveries with 820kW T53-L-11. Crew of two and seven troops, or three stretchers, two sitting casualties and medical attendant, or 1,360kg of freight. Rotor diameter 13.41m. Normal fuel capacity 625 litres; overload capacity 1,250 litres. For armed support duties, a rocket pack and electrically controlled machine gun could be mounted on each side of cabin. Other armament installations tested on UH-1B. Deliveries began March 1961. This version was superseded by the UH-1C on the Bell assembly line, but production continued by Fuji in Japan in order to fulfil an order of 89 UH-1Bs for the JGSDF.

UH-1C: In September 1965, Bell introduced its Model 540 'door hinge' rotor, with blades of increased 69mm chord, on this developed version of the UH-1B, offering some increase in speed and a substantial increase in manoeuvrability through resistance to blade stall. Through reduced vibration and stress levels, the 540 rotor eliminated previous limitations on maximum level flight speed. T53-L-11 turboshaft, accommodation and armament as for UH-1B. Normal fuel capacity 916 litres; overload 2,241 litres. Superseded UH-1B in production for US Army, but itself superseded by AH-1G.

UH-1E: In March 1962, Bell won a design competition for an assault support helicopter for the US Marine Corps, to replace Cessna O-1B/C fixed-wing aircraft and Kaman OH-43D helicopters. Designated UH-1E, this version is generally similar to the UH-1B/C, but has a personnel hoist, rotor brake and marine electronics. The 540 rotor and increased fuel capacity (as UH-1C) were introduced in 1965.

UH-1F: Following a design competition, it was announced in June 1963 that an initial batch of 25 UH-1F helicopters, based on the UH-1B were to be built for the USAF in 1963-64, and many more later, for missile site support duties. Each has a 948kW General Electric T58-GE-3 turboshaft (derated to 820kW), a 14.63m rotor, normal fuel capacity of 945 litres and overload capacity of 1,552 litres. This version can handle up to 1,815kg of cargo at missile site silos, or carry a pilot and 10 passengers. The first UH-1F flew 20 February 1964. Subsequent contracts for a further 121 aircraft were completed in 1967. First delivery to an operational unit was made to the 4486th Test Squadron at Eglin AFB in September 1964. This model was used for classified psychological warfare missions in Vietnam.

UH-1L: Utility version of TH-1L for US Navy. Eight ordered, and delivered during 1969.

UH-1M: US Army version fitted with Hughes Aircraft Iroquois night fighter and night tracker (Infant) system to detect and acquire ground targets under low ambient lighting conditions, two sensors mounted on nose of cabin serve a low-light level TV system with three cockpit displays and a direct-view system using an image intensifier at cockpit/gunner's station. Three UH-1Ms deployed with hunter-killer helicopter groups in Vietnam in early 1970 to evaluate system.

XH-40: Three prototypes, the first of which flew in 1956.

YH-40: Six service test models.

HueyTug: It was announced on 3 September 1968 that a UH-1C had been retrofitted with a 2,125kW Lycoming T55-L-7C turboshaft and 15.24m 'door-hinge' rotor as the prototype of a new flying crane version able to lift a 3 ton external payload. Associated modifications, all of which could be applied retrospectively to existing UH-1s, include substitution of a 1,491kW transmission and larger tail rotor, reinforcement of the airframe and fitment of a larger tailboom, and use of a stability control and augmentation system instead of the normal stabiliser bar.

Model 204B: Commercial and military export version of UH-1B, with 10 seats, 820kW T5311A turboshaft and 14.63m rotor. Tailboom incorporates a 0.99m3 baggage compartment, cabin doors with jettisonable emergency exits, passenger steps on each side of cabin, improved outside lights, commercial radio equipment, fire detection and extinguishing systems. First flight 8 March 1962; received FAA certification 4 April 1963.

AB 204B: Agusta-built version of Bell 204B manufactured in Italy.

The following description applies to the commercial Model 204B except where indicated:

DESIGN FEATURES: Two-blade all-metal semi-rigid main rotor with interchangeable blades. Usual Bell stabilising bar above and at right angles to main rotor blades. Underslung feathering axis hub. Two-blade all-metal tail rotor of honeycomb construction. Blades do not fold. Shaft-drive to both main and tail rotors. Main rotor rpm 295 to 324 (294 to 317 in UH-1F only).

FLYING CONTROLS: Small synchronised elevator on rear fuselage is connected to the cyclic control to increase allowable CG travel.

STRUCTURE: Main blades built up of extruded aluminium spars and laminates. Blade chord 53.3cm. All-metal tail rotor blades. The fuselage is a conventional all-metal semi-monocoque structure.

TAIL SURFACE: Small synchronised elevator on rear fuselage is connected to the cyclic control to increase allowable CG travel.

LANDING GEAR: Tubular skid type. Lock-on ground handling wheels available.

POWER PLANT: One 820kW Lycoming T5309A turboshaft engine mounted above fuselage aft of cabin. Two fuel tanks on CG, immediately aft of cabin, total capacity 916 litres.

ACCOMMODATION: Crew of two side by side, with dual controls. Standard model has bench seats for eight passengers, three abreast in centre row and five abreast in rear row. Optional layouts include individual chairs with tip-up seats or special interiors to customer's requirements, with optional settee, cabinet, writing table and glass-panelled dividing wall between crew and passenger compartments. Two doors on each side, front one hinged to open forward, rear one sliding aft. Compartment for 182kg of baggage. Passenger seats removable to provide 3.96m3 of accessible cargo space for loads of up to 1,360kg weight. Forced air ventilation system.

ELECTRONICS AND EQUIPMENT: Standard equipment includes hydraulic power boost on cyclic, collective and tail rotor flying controls. Optional equipment includes full all-weather flight instrumentation, multichannel select VHF transceivers, visual omni-range and ILS course indicator with heading and glide slope presentation, ADF, VHF marker beacon receivers, Sperry C-4 navigation compass, Lear VGI 5 in all-attitude flight indicator, and external sling for 1,820kg of freight.

Jane's Helicopter Markets and Systems

Technical data for Fuji/Bell Model 204B-2 (1967)

Engine: 1 x Avco Lycoming T5313B turboshaft, rated at 1044kW, main rotor diameter: 14.63m, fuselage length: 12.31m, height: 3.77m, take-off weight: 3856kg, empty weight: 2177kg, max speed: 204km/h, hovering ceiling, IGE: 4635m, service ceiling: 5750m, range at sea level: 383km
