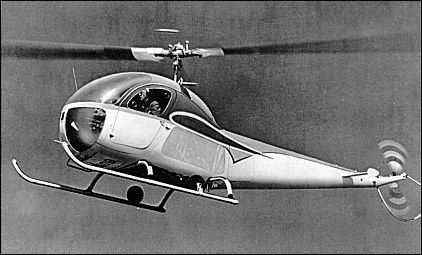

| Introduced in 1955, this was a deluxe version of the Model 47G. It had an enclosed sound-proofed cabin which could accommodate one pilot and two passengers. The cabin had leather upholstery throughout as well as a leather covered dashboard grouping all electrical switches and carburettor controls. The metal monocoque tail boom contained a luggage compartment. A.J.Pelletier "Bell Aircraft since 1935", 1992
This model marked Bell's return to a streamlined and entirely enclosed design. Its metal monocoque tail boom contains a baggage compartment big enough to take all the luggage carried by those travelling in this three-seater. The cabin's width has been increased to 1.52 metres, so that motor vehicle-size seats can be used. P.Lambermont "Helicopters and Autogyros of the World", 1958
Technical data for Model 47H-1
Number of seats: 3,
rotor diameter: 10.72m,
overall length: 12.62m,
fuselage length: 8.33m,
height: 2.82m,
loaded weight: 1067kg,
empty weight: 681kg,
maximum speed: 161km/h,
cruising speed: 142km/h,
initial rate of climb: 250m/min,
service ceiling: 3660m,
hover ceiling in ground effect: 1310m,
range: 339km

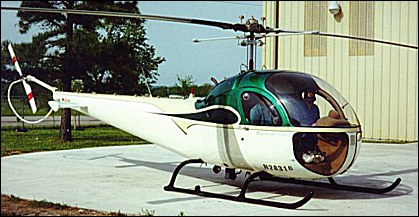

| Daniel Hewitt, daniel.hewitt=gmail.com, 08.04.2013 This Picture is From a Small Shop called Tulsa Helichopter Repair in Inola Oklahoma. I used to live there.I can't remember who actually owned this but the shop was owned by Steven Pond. The shop is also referd to locally as the gregory school house. Last I checked it's a churuch now. | | stevie lord, davidandstevie=gmail.com, 06.08.2011 need a picture of a Bell 47 Dashboard as I am building the helicopter. | | stevie lord, davidandstevie=gmail.com, 06.08.2011 need a picture of a Bell 47 Dashboard as I am building the helicopter. | | shoes, mosan.kii=yahoo.uk, 14.06.2011 Last I heard it was out on the West coast. Enjoyed seeing it again with a new paint job. | | Jim Work, iwork2=tds.net, 17.10.2010 I once owned this aircraft, ( N2831B ) Hov-Air Inc. Livonia , MI Sorry for selling it . Always was a tame and great handling ship. Nothing smoother than wooden blades if you take care of them. Your tech info on VNE & cruise speed is stretching it. Must be propaganda put out by Bell in a sales brochure. Retreating blade stall at about 120 would shake your fillings out ! Last I heard it was out on the West coast. Enjoyed seeing it again with a new paint job. | | Jim Work, iwork2=tds.net, 17.10.2010 I once owned this aircraft, ( N2831B ) Hov-Air Inc. Livonia , MI Sorry for selling it . Always was a tame and great handling ship. Nothing smoother than wooden blades if you take care of them. Your tech info on VNE & cruise speed is stretching it. Must be propaganda put out by Bell in a sales brochure. Retreating blade stall at about 120 would shake your fillings out ! Last I heard it was out on the West coast. Enjoyed seeing it again with a new paint job. |
|
| |
|
