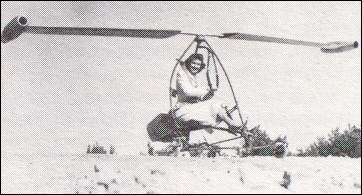

This miniature single-seater helicopter, designed as a private venture mainly for use in the United States Navy, has been simplified to such a degree that its components can be reassembled with hand tools. At each dp of the two-bladed rotor is a ram-jet engine, weighing a mere 2.5 kilos and running on either ordinary petrol or fuel oil.
The "Midget" is reported to be able to lift four times its own weight. The initial tests were carried out in 1954. P.Lambermont "Helicopters and Autogyros of the World", 1958
* * *
| Technical data for "Midget"
Number of seats: 1,
engines: 2 x ram-jets equivalent to 40hp,
rotor diameter: 4.57m,
weight fully loaded: 227kg,
empty weight: 45kg,
cruising speed: 120km/h
|
