Ansat 3 Maksimum medium helicopter

English name: Maximum

TYPE: Medium transport helicopter.

PROGRAMME: Initial details released, and cabin mockup shown, at Moscow Salon in August 2003. To be certified to AP-29 civil standards.

DESIGN FEATURES: Development of Ansat into medium helicopter category.

POWER PLANT: Two turboshaft engines mounted above cabin. Option of 1282shp RD-600, 1479shp VK-1500 or 987shp VK-800.

ACCOMMODATION: Two flight crew and up to 17 passengers on troop seats in cabin.

Jane's All the World's Aircraft, 2005-2006

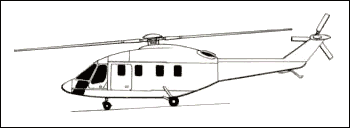

Ansat 3 Maksimum medium helicopter

Technical data for Ansat 3

Main rotor diameter: 14.5m, tail rotor diameter: 2.70m, fuselage max width: 1.80m, height to top of fin: 3.73m, max take-off weight: 5678kg, max payload: 1700kg, max level speed: 280km/h, normal cruising speed: 250km/h, economic cruising speed: 140km/h, hovering ceiling, IGE: 5000m, hovering ceiling, OGE: 3500m, service ceiling: 6000m, range with 30 min reserve: 850km

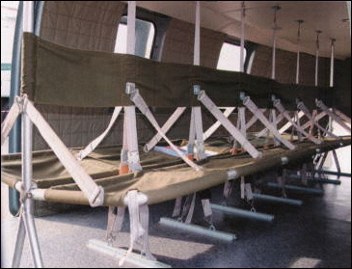

Interior of Ansat 3 Maksimum
