Embraer EMB-200/201 Ipanema

Design of an agricultural aircraft, to a specification laid down by the Brazilian Ministry of Agriculture, was initiated in May 1969 by the Departmento de Aeronaves of the nation's Centra Te'chnico de Aeronautica. Following the establishment of EMBRAER on 2 January 1970 to promote a Brazilian aircraft industry, responsibility for development of this new single-seat agricultural aircraft was transferred to EMBRAER and the prototype was flown for the first time on 30 July 1970.

Designated originally EMBRAER EMB-200 Ipanema, the aircraft was a cantilever low-wing monoplane of all-metal construction with fixed tailwheel landing gear and power provided by a 194kW Avco Lycoming O-540-H2B5D engine. Brazilian type certification was gained on 14 December 1971 and initial production versions were the EMB-200 and EMB-200A which differed by having fixed-pitch and variable-pitch propellers respectively. In 1974, after 73 EMB-200 series aircraft had been built, production of an improved EMB-201 began; this latter differed by having a 224kW IO-540 engine with a constant-speed propeller and detail improvements. A total of 200 EMB-201s was built. In 1977, the updated EMB-201A first flown on 10 March, entered production. This introduced a new wing profile, improved systems and revisions in cockpit layout. Built since 1981 by Industria Aeronautica Neiva, an EMBRAER subsidiary, a total of 355 had been ordered by 1990, bringing total Ipanema sales to more than 630. In 1988, by which time 600 had been delivered, a further improved Ipanema was launched, but without a new designation, and options include a three-bladed Hartzell propeller.

3-View

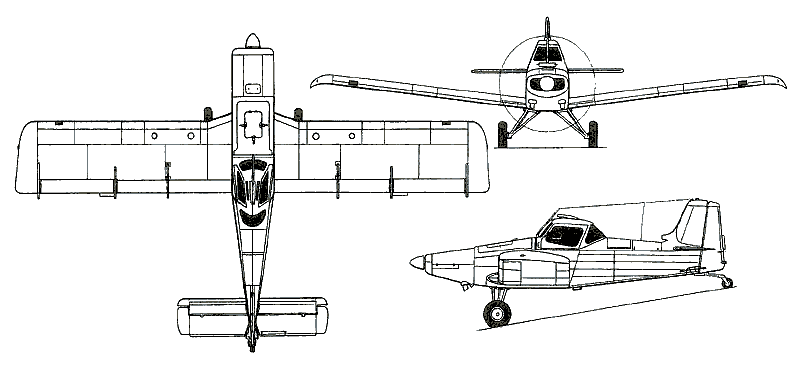

Embraer EMB-200/201 IpanemaA three-view drawing (800 x 366)

Specification
 MODELEMB-201A
 ENGINE1 x Avco Lycoming IO-540-K1J5D flat-six piston engine, 224kW
 WEIGHTS
  Take-off weight1800 kg3968 lb
  Empty weight1011 kg2229 lb
 DIMENSIONS
  Wingspan11.20 m37 ft 9 in
  Length7.43 m24 ft 5 in
  Height2.22 m7 ft 3 in
  Wing area19.94 m2214.63 sq ft
 PERFORMANCE
  Max. speed225 km/h140 mph
  Cruise speed204 km/h127 mph
  Ceiling3470 m11400 ft
  Range877 km545 miles
