Fairey Albacore

1938

Back to the Virtual Aircraft Museum
  TORPEDO-BOMBERVirtual Aircraft Museum / United Kingdom / Fairey

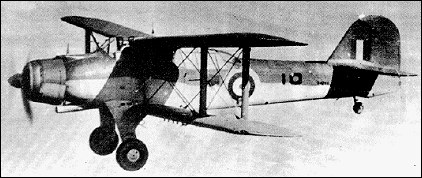

Fairey Albacore

The Albacore torpedo-bombing biplane was first flown in prototype form on 12 December 1938. During the spring of 1940 the first production aircraft entered FAA service and for the remainder of that year were flown mainly on coastal patrol, spotter-reconnaissance, minelaying and night-bombing duties. However in the following year Albacores went to sea in HMS Formidable and other carriers and from then were active on convoy protection duties in the Baltic and in anti-submarine and other roles in the Mediterranean and elsewhere.

The Albacore was removed from FAA service in late 1943, having never performed its intended role as a Swordfish replacement. It had a more powerful 794kW Bristol Taurus or 842kW Taurus XII 14-cylinder sleeve-valve air-cooled radial engine in the NACA cowling with leading-edge exhaust collector and trailing-edge controllable gills, enclosed cockpits for the crew of two or three, one forward-firing 7.7mm Browning and two rear-mounted 7.7mm Vickers guns on a Fairey high-speed mounting, and hydraulically operated flaps.

The last Albacores in operational service were those ex-FAA aircraft taken over by the RCAF and used during the Allied advance into Europe from mid-1944. Production totalled 803 aircraft.

FACTS AND FIGURES

© The Taurus engine suffered reliability problems compared to the dependable 'Peggy' (Pegasus) of the Swordfish.

© The cockpit design gave the pilot a much better view than on the Swordfish, even if he was uncomfortably hot and his gunner frozen.

© Despite its better streamlining, the Albacore's cruising speed and range were less than that of the Swordfish, although the service ceiling was much higher.

© The Albacore was used for torpedo attacks, bombing, flare dropping and training Swordfish crews.

Fairey Albacore

Specification
 CREW3
 ENGINE1 x Bristol Taurus XII, 843kW
 WEIGHTS
  Take-off weight4745 kg10461 lb
  Empty weight3289 kg7251 lb
 DIMENSIONS
  Wingspan15.24 m50 ft 0 in
  Length12.14 m40 ft 10 in
  Height4.32 m14 ft 2 in
  Wing area57.88 m2623.01 sq ft
 PERFORMANCE
  Max. speed259 km/h161 mph
  Cruise speed187 km/h116 mph
  Ceiling6310 m20700 ft
  Range1497 km930 miles
 ARMAMENT3 x 7.7mm machine-guns, 1 x 730kg torpedo, 6 x 113kg or 4 x 227kg bombs

3-View
Fairey AlbacoreA three-view drawing (684 x 574)
