De Havilland D.H.103 Hornet / Sea Hornet

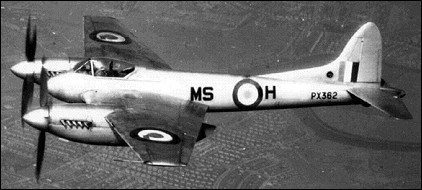

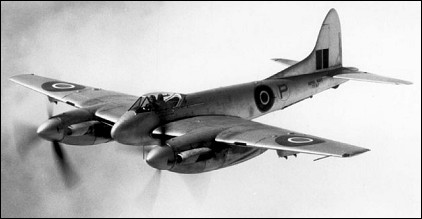

The twin-engined Hornet fighter was designed to Specification F.12/43 and the first prototype flew on 28 July 1944. It entered production at the end of 1944 and deliveries were made to the RAF from February 1945. Four versions were produced for the RAF as: the Hornet F.1 medium-range single-seat fighter with four 20mm cannon and provision for carrying two 450kg bombs or two 455 litre drop tanks; Hornet PR.2 long-range unarmed photographic reconnaissance aircraft; Hornet F.3 long-range single-seat fighter with the increased fuel tankage of the PR.2; and Hornet FR.4 with a vertically mounted camera. More than 200 were built. The Hornet was the fastest twin piston-engined operational combat aircraft in the world while in service and the first aircraft to demonstrate a cartwheel manoeuvre. Operated in Malaya in the early 1950s, the type was finally withdrawn from service in 1955.

The Sea Hornet was a naval adaptation of the RAF Hornet. It was fitted with folding wings and had provision for deck arrester and RATO gear. Air-draulic shock-absorber legs replaced the rubber-in-compression legs to eliminate bounce in carrier landings. Three versions were built as: the Sea Hornet F.20 carrier-based medium-range single-seat fighter/reconnaissance/strike aircraft, capable of carrying eight 27kg rockets, bombs, mines and drop-tanks; Sea Hornet NF.21 carrier-based two-seat night fighter/reconnaissance/strike aircraft fitted with an A.I. radar scanner in a thimble radome in the nose; and Sea Hornet PR.22 carrier-based medium-range photographic-reconnaissance version of the F.20. The F.20 first entered service with No.801 Squadron, FAA and joined HMS Implacable in 1949. A total of 200 Sea Hornets were built.

De Havilland D.H.103 Hornet / Sea Hornet

Specification
 MODELHornet F. Mk 3
 CREW1
 ENGINE2 x Rolls-Royce "Merlin" 130/131, 1544kW
 WEIGHTS
  Take-off weight9480 kg20900 lb
  Empty weight5840 kg12875 lb
 DIMENSIONS
  Wingspan13.72 m45 ft 0 in
  Length11.18 m37 ft 8 in
  Height4.32 m14 ft 2 in
  Wing area33.54 m2361.02 sq ft
 PERFORMANCE
  Max. speed760 km/h472 mph
  Ceiling10670 m35000 ft
  Range4820 km2995 miles
 ARMAMENT4 x 20mm cannons, 900kg of weapons

Comments1-20 21-40
Brian M Phillips, e-mail, 16.12.2017 14:20

I am very proud to have worked on Sea Hornets whilst a member of 809 squadron RN. we embarked on HMS Eagle and regrettably lost an aircraft over the side in a deck incident, we were put ashore on Gibraltar operating from North Front whilst we were housed at the Toc H holiday camp ?? We last saw the aircraft when they left North Front to fly back to RNAS Culdrose and we all took passage on a carried for transit home. We never saw our aircraft again and instead the squadron reformed with Venom 20s at RNAS Yeovilton.

reply

Barry, 27.06.2016 13:39

The late great Eric "Winkle" Brown's favourite aeroplane ever.

reply

Paul Scott, e-mail, 26.01.2015 16:36

Classic 'plane, like a lot, came too late to make a real impact.

reply

david burns, e-mail, 09.12.2014 05:05

I was completely unaware of this aircraft until I bought 1 off e bay.It's a shame that not 1 was saved for historic reasons, it looks to me that De Havilland would have a Hornet and a Sea Hornet in their museum. It would be great to see 1 at an airshow

reply

Aaron, e-mail, 27.02.2014 18:36

Almont,
If you haven't had any luck with finding a 1 /48 scale model yet, there are three Hornets and one Sea Hornet 1 /48 scale models for sale on ebay right now.

reply

almont baltzer, e-mail, 11.03.2013 01:29

Repeating my request for a 1 /48 scale model of the D.H.Hornet.

reply

almont baltzer, e-mail, 05.01.2013 04:06

Would like to know if anyone has any 1 /48 scale Hornets for sale or know where I might abtain such models.

reply

alan White, e-mail, 17.05.2012 14:41

saw dozens of sea hornets waiting to be scrapped at RNAS ABBOTTSINCH

NOW GLASGOW AIRPORT.about 1957.

reply

Dave, e-mail, 09.03.2012 08:32

Well known Australian Test Pilot Brian "Black Jack" Walker was flying one when Geoffrey De Haviland tragically disappeared in the DH108. Brian maintained the DH103 was the first (maybe only) prop a /c to top 500 mph in level flight.He showed me an original Test Paper documenting 501 mph. He told me he was leaving it to the RAAF Museum at Point Cook

reply

almont baltzer, e-mail, 29.02.2012 03:58

The most aerodynamic aircraft ever built a true thoroughbred.A good book on this beast:Sea Hornet,from the cockpit #5 Alan J.Leahy. Have photos of the Hornet in the short lived Aerobatic Sqdn and with Spartin Airways.

reply

Klaatu, e-mail, 07.08.2011 15:03

The British equivalent to the Lockheed Lightning. An excellent fighter, but about three years too late.

reply

Capt Earle FlemingCPAIR, e-mail, 21.03.2011 05:01

More Mossie Hornet Operational Info. and Addresses of MODELs

reply

Barry, 24.02.2011 18:48

The length of the F3 was 36ft 8in and not as stated above. The naval equivalent of the F3 was the Sea Hornet F20 which first equipped 801 Naval Air Squadron at Ford in 1947. The Sea Hornet NF21 was a two seater with a thimble nose carrying the radar observer behind the wing. This model was slightly longer at 37ft and had an increased tail span and flame dampening exhausts. There were 74 of this model produced plus a further 24 unarmed PR22 models.

reply

George E. Smith, e-mail, 12.01.2011 20:40

Without a doubt the prettiest twin engined monoplane ever built. It's sad that there seems to be almost no video footage of them either. A Hornet was entered in the England to New Zealand air race; circa 1960; but did not make the race, which was won by a Canberra Bomber (aka B-57). I believe that a Twin Mustang, P-82, was also a no-show entrant in that race. The Vickers Valiant bomber that made the race, evidently had inherent airframe reliability problems, and was the least successful of the RAF V-Bombers.

reply

dominic, e-mail, 22.10.2010 19:40

i am building a model of the mk4 made by frog in the seventies

reply

Ali Duncan, e-mail, 21.09.2010 15:37

I'd love to see one fly, but they've gone, alas. The apex of the piston aeronautical engineers efforts, ten years service says a lot, considering fighters were first in line for jet propulsion. I suppose it's just the minimal fuselage, and massive engines which give it the right look, marvelous machine.

reply

Ron, e-mail, 28.05.2010 01:32

Initial climb was 4,000' /min. It was a real delight to fly even off a carrier. Too bad it wasn't treated like a winner.

reply

Dave DiBona, e-mail, 24.08.2010 15:43

I just think this is such a unique aricraft with such a long range and good speed the De Haveilland mind set is what makes progress in any field and that is the ability to seek the best possible end without marching in the current parade of ideas

reply

Eric Loveland, e-mail, 31.01.2010 02:55

Had the honour taking a dual control Mossie to 64 Sqdn. (a P51 Mustang Sqdn.)Converting them to the brand new Hornets in order for the Sqdn. to lead the Victory Fly-past over Buckingham Palace Without doubt the best flying plane I`ve ever flown

reply

paul scott, e-mail, 19.10.2009 03:01

What the Whirlwind could've been, if sorted out earlier.

reply
