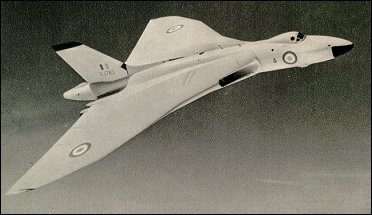

Avro 698 Vulcan

The first jet bomber to employ the delta-wing configuration. The original Avro 698 Vulcan prototype was developed to Air Ministry Specification B.35/46, issued on 1 January 1947, flying for the first time on 30 August 1952. It was then fitted with four Rolls-Royce Avon turbojets, but was later re-engined with Bristol Siddeley Sapphires and subsequently Rolls-Royce Conways.

A second prototype powered by four Bristol Siddeley Olympus 100 - with a slightly longer fuselage to eliminate the need for shortening the nose-wheel leg during retraction - made its first flight on 3 September 1953. It was later fitted with wings having a redesigned leading edge with compound sweepback and it made its first flight in this form on 5 October 1955. On 31 August 1957 it began flight testing the larger wing of the Vulcan B.2.

All production Vulcans were fitted with wings having the revised leading-edge configuration and two main versions were produced. The first production version was the Vulcan B.1, powered by Olympus Mk 101 or Olympus Mk 102 engines. All of these engines were converted later to Olympus Mk 104 standard. Planned re-equipment of three Bomber Command squadrons of the RAF with this version was completed in 1960. The B.1A version was given electronics in a bulged tail-cone, like the B.2. A total of 45 B.1/1A were built. The B.2 was a developed version with Olympus Mk 201 or 301 engines, wing of increased span (with elevon controls) and the ability to carry the Blue Steel stand-off nuclear bomb. The first production B.2 flew on 30 August 1958. Production was completed in 1964.

Avro 698 Vulcan

Specification
 CREW5
 ENGINE4 x BS/RR "Olympus 301", 89.0kN
 WEIGHTS
  Take-off weight91000 kg200622 lb
 DIMENSIONS
  Wingspan33.8 m111 ft 11 in
  Length30.5 m100 ft 1 in
  Height8.3 m27 ft 3 in
  Wing area368.3 m23964.34 sq ft
 PERFORMANCE
  Ceiling18300 m60050 ft
  Range w/max.fuel6400 km3977 miles
 ARMAMENTone guided missile or bombs

3-View

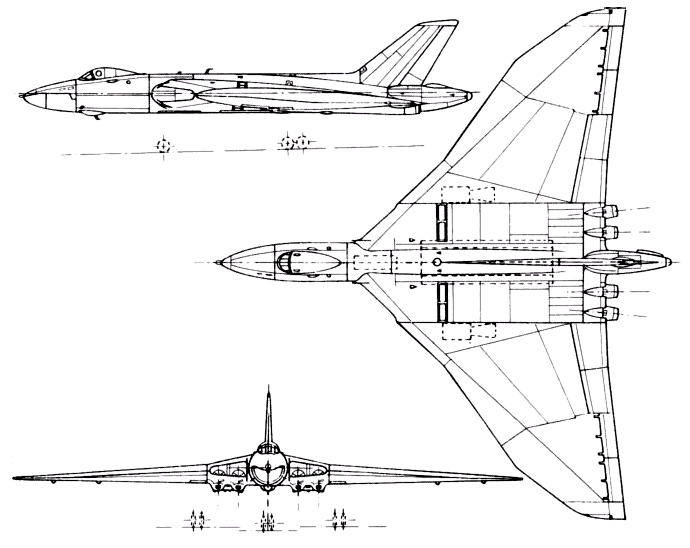

Avro 698 VulcanA three-view drawing (690 x 548)
