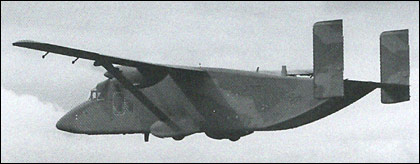

Short 330 / C-23 Sherpa

The Short 330 was developed from the SC.7 Skyvan, with a fuselage stretched to accommodate 30 passengers while retaining the Skyvan's twin tail fin, but including a semi-retractable undercarriage. The Short 330 was aimed at regional, commuter and bush operators that required a simple, unpressurized, reliable aircraft. Like the Skyvan, the 330 attracted a combination of commercial and military/paramilitary customers, including the US Air Force/Army, which purchased 34 C-23 Sherpa examples from a total of 141 Short 330s built.

3-View
Short 330 / C-23 SherpaA three-view drawing (752 x 967)

Specification
 MODELC-23A
 CREW3
 ENGINE2 x Pratt Whitney PT6A-45R turboprops, 900kW
 WEIGHTS
  Take-off weight10390 kg22906 lb
  Loaded weight6680 kg14727 lb
  Payload3175kg7000 lb
 DIMENSIONS
  Wingspan22.76 m75 ft 8 in
  Length17.69 m58 ft 0 in
  Height4.95 m16 ft 3 in
  Wing area42.1 m2453.16 sq ft
 PERFORMANCE
  Cruise speed352 km/h219 mph
  Ceiling6000 m19700 ft
  Range w/max payload370-1240 km230 - 771 miles

Comments
Pete Kuhns, e-mail, 13.07.2016 23:37

I know an Army (helicopter) pilot who was assigned Sherpa 'duties' in 2007. The Army had 44 of them he was told - he had been in the Army for 20 years and never even knew about this plane let alone his outfit having any. He said the plane was used for 'Ash and Trash' which I guess is an Army term for just about anything - he enjoyed flying it and also the missions over Iraq. The planes were retired from the Army last year (2015) I am told.

reply

Arnie Gardner, e-mail, 31.03.2015 23:14

I was stationed with the 10th Military Airlift Squadron, Zweibrucken, Germany. We were the first unit to get the new C-23A Sherp in 1984.

reply

Matthieu KIMONA KIKANDA, e-mail, 27.05.2010 17:25

Puis je avoir les informations sur les conditions d,achat ou de leas?

reply

John Minietta, e-mail, 24.11.2008 17:24

I am attempting to acquire an equipment fit list for this airplane and the SD3-60.

reply

Short Brothers, e-mail, 21.09.2008 02:54

For 10th MAS and USAF C-23A info contact Sherpasociety.org

reply
