SNCAC NC.3021 Belphegor

1946

Back to the Virtual Aircraft Museum
  HIGH-ALTITUDE RESEARCH AIRCRAFTVirtual Aircraft Museum / France / SNCAC

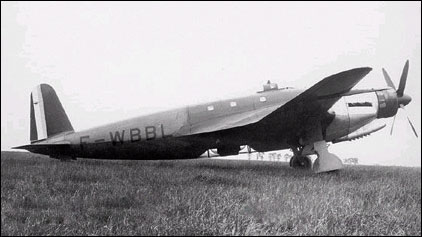

SNCAC NC.3021 Belphegor

An experimental aircraft intended for high-altitude researches. The only prototype flew for the first time on 6 June 1946.

Specification
 CREW5
 ENGINE1 x 3000hp Daimler-Benz DB-610A piston engine
 WEIGHTS
  Take-off weight9971 kg21982 lb
  Empty weight7367 kg16242 lb
 DIMENSIONS
  Wingspan22.32 m73 ft 3 in
  Length17.09 m56 ft 1 in
  Height6.10 m20 ft 0 in
  Wing area50.00 m2538.20 sq ft
 PERFORMANCE
  Max. speed600 km/h373 mph
  Ceiling13500 m44300 ft

Comments
Barry, 30.05.2017 14:27

The engine was a pair of DB605 coupled together to form a DB610 with an output of 2,950 h.p. which drove a single four bladed propeller. The crew of three occupied a pressure cabin with room for two observers. The engine overheated constantly and with money running out this one off only achieved some forty hours flying time before it was grounded and eventually scrapped.

reply
