Wibault Wib 210

1929

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / France / Wibault

Wibault Wib 210

There is no text information for this aircraft at the moment.

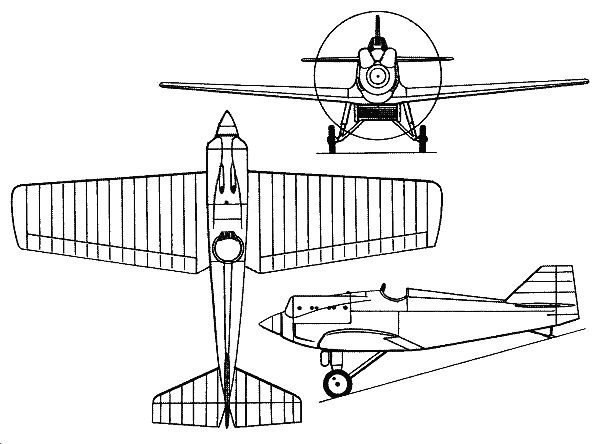

3-View
Wibault Wib 210A three-view drawing (600 x 444)

Specification
 MODELWibault 210
 CREW1
 ENGINE1 x 500hp Hispano-Suiza 12Mb
 WEIGHTS
  Take-off weight1320 kg2910 lb
  Empty weight1016 kg2240 lb
 DIMENSIONS
  Wingspan9.47 m31 ft 1 in
  Length6.87 m23 ft 6 in
  Height2.30 m8 ft 7 in
  Wing area16.00 m2172.22 sq ft
 PERFORMANCE
  Max. speed350 km/h217 mph
  Cruise speed310 km/h193 mph
  Ceiling8000 m26250 ft
  Range600 km373 miles
 ARMAMENT2 x 7.7mm
