  LONG-RANGE BOMBERVirtual Aircraft Museum / Germany / Junkers

Junkers Ju 89

Four-engined heavy bomber, a competitor of the Do 19. It was cancelled, but Junkers re-used elements for the Ju 90 airliner, which was later developed into the Ju 290.

Junkers Ju 89

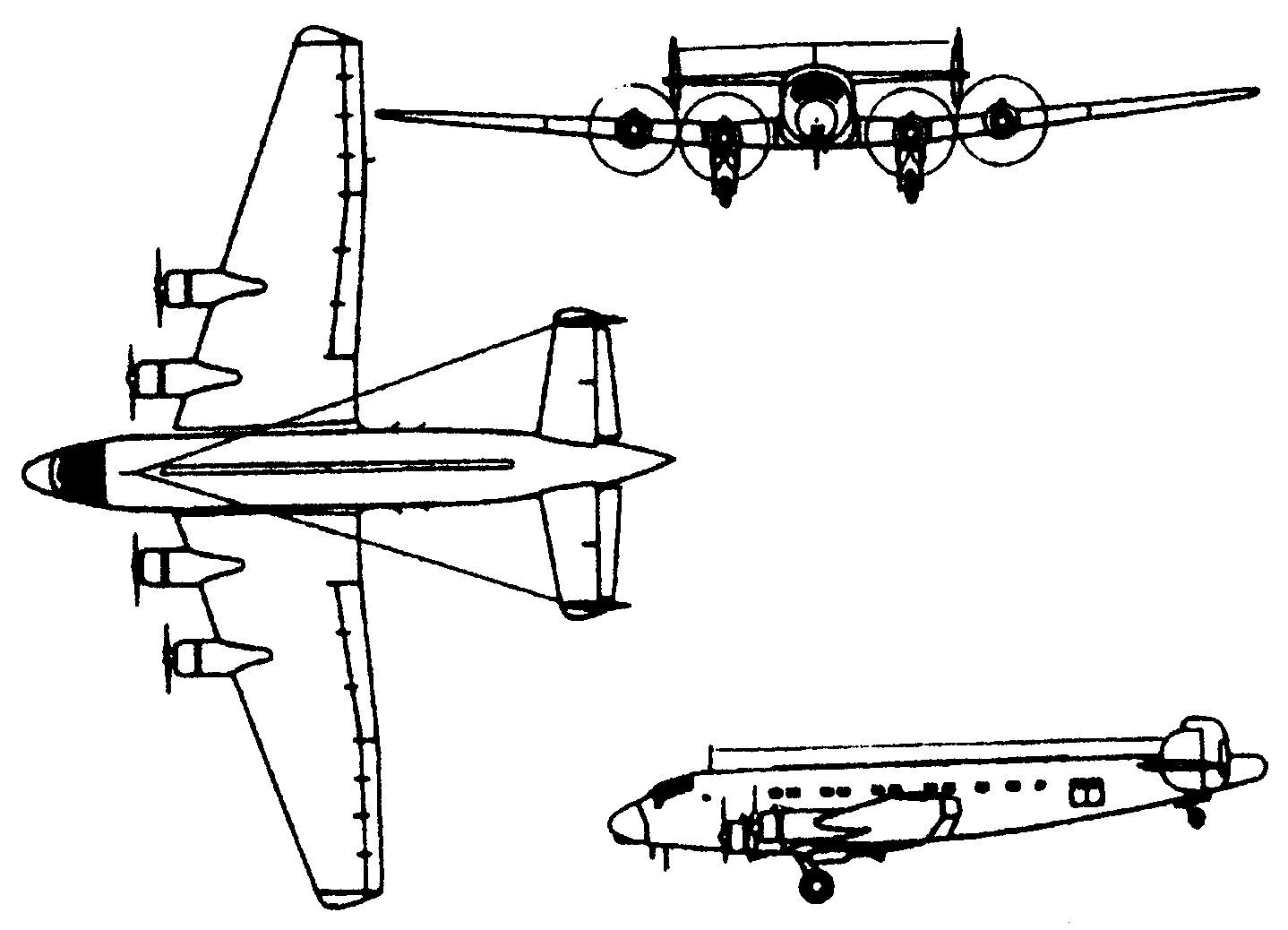

3-View
Junkers Ju 89A three-view drawing (1438 x 1038)

Comments
Klaatu83, e-mail, 07.11.2015 06:35

Just for the record, the aircraft illustrated in the "3-View" is actually the Ju 90, which was the airliner version of the Ju 89 bomber. Unlike the Ju 89, which never got beyond the prototype stage, a total of 18 examples of the Ju 90 airliner were built for operation by Lufthansa.

reply

Klaatu83, e-mail, 30.10.2014 22:01

The Ju-89 was a better aircraft, and had more development potential, than the competing Dornier Do-19. It's development was stopped for political reasons, rather than due to any design shortcomings. The successful Ju-90 was an airliner version of the same basic airframe.

reply

Bugs Wirkus, e-mail, 22.07.2013 22:40

One cannot place all of the Long-Range-Bomber "fault" on
E.Udet; he had help! Goering's obsequious attitude toward
Hitler (who wanted QUANTITY!) and Germany's thorough lack
of planning and lack of raw materials were 'battles' the
Luftwaffe would face throughout WW II.

reply

Mark, e-mail, 20.09.2012 17:01

Ju-89 V2

Crew: Five
Length: 26.49 m (86 ft 11 in)
Wingspan: 35.25 m (115 ft 8 in)
Height: 7.60 m (24 ft 11 in)
Wing area: 184 m² (1,979 ft²)
Empty weight: 17,000 kg (37,480 lb)
Loaded weight: 20,800 kg (50,266 lb)
Max. takeoff weight: 27,800 kg (61,160 lb)
Powerplant: 4 × Daimler-Benz DB 600A, 560 kW (750 hp) each

Performance

Maximum speed: 386 km /h (241 mph)
Range: 2,980 km (1,862 mi)
Service ceiling: 7,000 m (22,960 ft)
Wing loading: 11.2 kg /m² (25.4 lb /ft²)
Power /mass: 0.06 hp /lb ()

Armament

(proposed)

2 × 20 mm MG FF cannons
2 × 7.92 mm (.312 in) MG 15 machine guns
1,600 kg (3,520 lb) bombload

reply

Mark, e-mail, 20.09.2012 17:01

Ju-89 V2

Crew: Five
Length: 26.49 m (86 ft 11 in)
Wingspan: 35.25 m (115 ft 8 in)
Height: 7.60 m (24 ft 11 in)
Wing area: 184 m² (1,979 ft²)
Empty weight: 17,000 kg (37,480 lb)
Loaded weight: 20,800 kg (50,266 lb)
Max. takeoff weight: 27,800 kg (61,160 lb)
Powerplant: 4 × Daimler-Benz DB 600A, 560 kW (750 hp) each

Performance

Maximum speed: 386 km /h (241 mph)
Range: 2,980 km (1,862 mi)
Service ceiling: 7,000 m (22,960 ft)
Wing loading: 11.2 kg /m² (25.4 lb /ft²)
Power /mass: 0.06 hp /lb ()

Armament

(proposed)

2 × 20 mm MG FF cannons
2 × 7.92 mm (.312 in) MG 15 machine guns
1,600 kg (3,520 lb) bombload

reply

Ronald Lameck, e-mail, 30.08.2011 04:12

War experience would show the Ju-89 seriously under-armed, and perhaps under-powered. Those problems could have been corrected, but Germany lacked the production capacity to make useful numbers of the Ju-89. Not Udet's "lack of vision", but High Command lack of a coherent plan saved Britain. Germany lost the war on the beach at Dunkirk. 300,000 British prisoners-of-war would have virtually guaranteed British acceptance of peace terms.

reply

Karl Brust, e-mail, 09.07.2011 10:37

It was not Ernst Udet that canceled the Junkers 89 but Albert
Kesselring. After the death of General Wever, Kesselring took his place as Chief of Staff, and canceled the four engine bomber.

reply

gooda, 21.06.2011 05:39

British bombers until five years later when the Shorts Sterling appeared. Ernst Udet's lack of vision in declining the Ju-89 saved the war for England.

reply

Simon Gunson, e-mail, 06.09.2010 11:25

For an aircraft built in 1937 it's worth recalling that this aircraft wasn't equalled in performance by British bombers until five years later when the Shorts Sterling appeared. Ernst Udet's lack of vision in declining the Ju-89 saved the war for England.

reply
