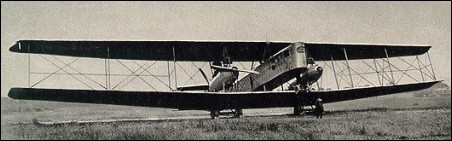

Zeppelin-Staaken 8301

The first prototype flew in 1918. Three built.

3-View

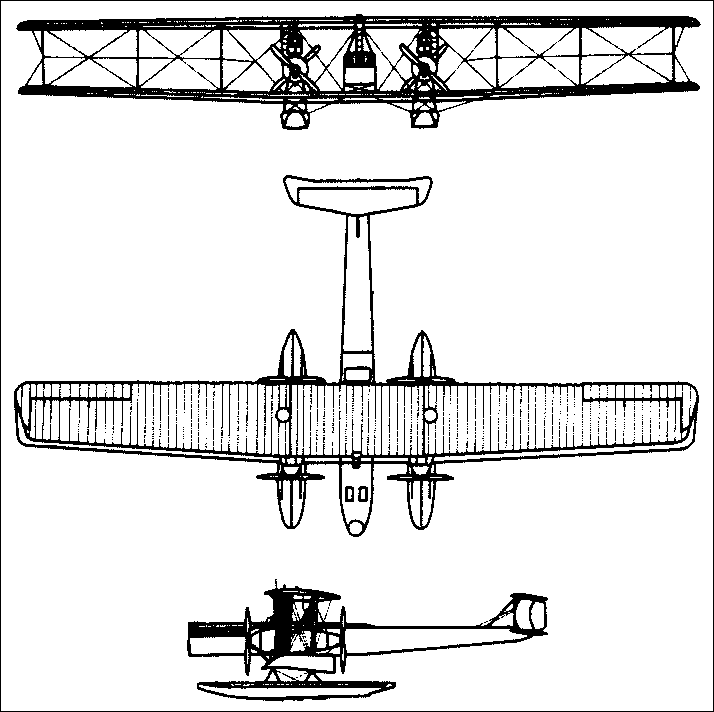

Zeppelin-Staaken 8301A three-view drawing (714 x 712)

Specification
 MODELZeppelin 8301
 CREW5
 ENGINE4 x Mercedes D-IVa
 WEIGHTS
  Take-off weight12500 kg27558 lb
  Empty weight9000 kg19842 lb
 DIMENSIONS
  Wingspan42.4 m139 ft 1 in
  Length21.0 m69 ft 11 in
  Height6.8 m22 ft 4 in
  Wing area340.5 m23665.11 sq ft
 PERFORMANCE
  Max. speed130 km/h81 mph
  Range w/max.fuel1000 km621 miles
 ARMAMENT5 machine-guns, 1800kg of bombs
