Aermacchi MB.339

1976

Back to the Virtual Aircraft Museum
  TRAINER, LIGHT ATTACK PLANEVirtual Aircraft Museum / Italy / Macchi

Aermacchi MB.339

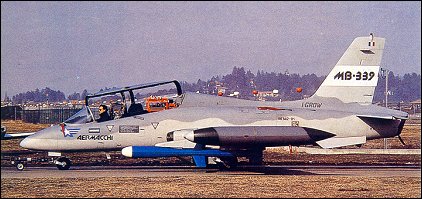

The Aermacchi MB.339 had its origin in a study contract issued by the Italian Air Force for a second-generation trainer and light attack aircraft to succeed the MB.326 and the Fiat G.91T, for service in the 1980s. The company undertook nine separate design studies, each with a different powerplant option, and the Viper-powered version was selected. A redesigned forward fuselage provided the instructor in the rear seat with better all-round visibility, and the avionics suite was completely upgraded. The single-seat version was designated MB.339K. Customers include Argentina, Peru, Dubai, Ghana, Malaysia and Nigeria.

Robert Jackson "The Encyclopedia of Aircraft", 2004

FACTS AND FIGURES

© The MB.339 introduced a 33cm stepped SICAMB/Martin-Baker Mk 10 'zero-zero' ejection seat.

© Lockheed sought to sell licence-built MB.339s to the US as the 'T-bird II'

© Just one of many export customers, Eritrea bought six MB.339s in March 1996.

© Six Argentine MB.339A fighter trainers were used as warplanes against the British in the 1982 Falklands War.

© The MB.339K is a single-seat version designed exclusively for light attack.

© Operators of the MB.339 include Dubai, Ghana, Malaysia, Nigeria and Peru.

3-View
Aermacchi MB.339A three-view drawing (752 x 1282)

Specification
 MODELMB.339
 CREW1-2
 ENGINE1 x Rolls-Royce Viper 632-43 turbojet, 1814kg
 WEIGHTS
  Take-off weight5895 kg12996 lb
  Loaded weight3215 kg7088 lb
 DIMENSIONS
  Wingspan10.86 m36 ft 8 in
  Length10.97 m36 ft 0 in
  Height3.99 m13 ft 1 in
  Wing area19.30 m2207.74 sq ft
 PERFORMANCE
  Max. speed971 km/h603 mph
  Ceiling14630 m48000 ft
  Range1760 km1094 miles
  Range w/max.fuel2110 km1311 miles
 ARMAMENTup to 1800kg of weapons
