Breda Ba.25

1932

Back to the Virtual Aircraft Museum
  TRAINERVirtual Aircraft Museum / Italy / Breda

Breda Ba.25

The Ba.25 was a two-seat advanced training biplane powered by a Lynx or Castor engine. It was operated by the Regia Aeronautica as a landplane and twin-float seaplane. The Ba.28 was similar except that power was provided by a 290kW Piaggio Stella VII (Gnome-Rhone K-7) radial engine.

3-View

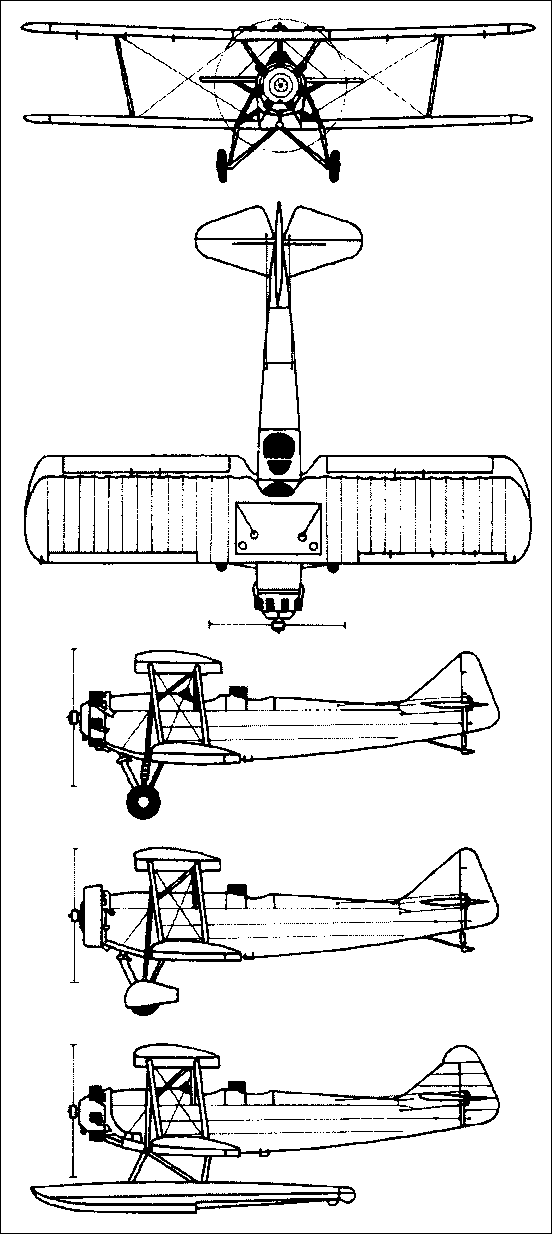

Breda Ba.25A three-view drawing (552 x 1234)

Specification
 MODELBa.25
 CREW2
 ENGINE1 x Alfa Romeo D-2, 175kW
 WEIGHTS
  Take-off weight1038 kg2288 lb
  Loaded weight790 kg1742 lb
 DIMENSIONS
  Wingspan9.8 m32 ft 2 in
  Length7.8 m26 ft 7 in
  Height2.8 m9 ft 2 in
  Wing area25.0 m2269.10 sq ft
 PERFORMANCE
  Cruise speed195 km/h121 mph
  Ceiling7500 m24600 ft
  Range w/max.fuel500 km311 miles
