Mitsubishi F1M PETE

1936

Back to the Virtual Aircraft Museum
  RECONNAISSANCE FLOAT-PLANEVirtual Aircraft Museum / Japan / Mitsubishi

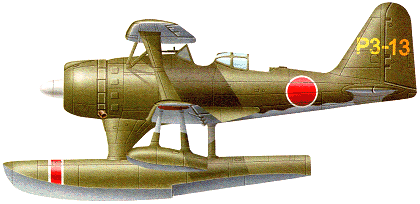

Mitsubishi F1M PETE

Roughly equivalent to the American Curtiss SOC Seagull observation float biplane, the smaller Mitsubishi F1M was of more compact and neater design, its development starting about two years later in 1934. First flown in June 1936, the F1M1 embodied all the efforts of its designers to achieve an exceptionally clean aerodynamic shape, including low-drag float mountings, single interplane struts and all-metal construction, only the control surfaces being fabric-covered. The early aircraft displayed poor water handling and a lack of in-flight directional stability, however, but after fairly extensive alterations the production F1M2 emerged as a thoroughly efficient aircraft, acceptable in all respects.

Initial production by Mitsubishi, which got under way in 1938, amounted to 524 aircraft before it was transferred to the 21st Naval Air Arsenal (Dai-Nijuichi Kaigun Kokusho) at Sasebo, where a further 590 were built. In due course the F1M2 equipped all but one of the K-Maru (6,900-ton) and S-Maru (7,200/8,300-ton) classes of converted merchant seaplane tenders, as well as numerous battleships and cruisers of the Imperial Japanese Navy. Codenamed 'Pete' by the Allies, FlM2s were present at the Battle of Midway, two aircraft being launched from the battleship Kirishima (but being lost when the Japanese scuttled the sorely-crippled ship at the end of the Battle of the Solomons). The giant superbattleships Musashi and Yamato each carried several 'Petes' to spot for their 460mm main gun armament at the time of the Marianas battles, but none was used in earnest; instead the Musashi succumbed to American bombs and torpedoes in the Sibuyan Sea; the Yamato, bent on a suicide mission to Okinawa, followed her to the bottom on 7 April 1945.

Nevertheless 'Pete' seaplanes were widely used throughout the Pacific war, accompanying every seaborne landing by Japanese forces, providing gunnery spotting during preliminary bombardment by supporting warships and subsequently serving as covering fighters (and even dive-bombers) once the assault forces were ashore. It was also flown on convoy escort duties with the many supply convoys sailed by the Japanese during the mid-war period. In the last stages of the war, the type was committed to the unequal task of defending the Japanese homeland from the devastating American raids, serving alongside 'Rex' and 'Rufe' seaplane fighters with the Otsu Kokutai in 1945.

Mitsubishi F1M PETE

Specification
 MODELF1M2
 CREW2
 ENGINE1 x Mitsubishi "Tsuisei-13", 655kW
 WEIGHTS
  Take-off weight2550 kg5622 lb
  Empty weight1928 kg4251 lb
 DIMENSIONS
  Wingspan11 m36 ft 1 in
  Length9.5 m31 ft 2 in
  Height4 m13 ft 1 in
  Wing area29.54 m2317.97 sq ft
 PERFORMANCE
  Max. speed365 km/h227 mph
  Ceiling9440 m30950 ft
  Range730 km454 miles
 ARMAMENT3 x 7.7mm machine-guns, 120kg of bombs

3-View
Mitsubishi F1M PETEA three-view drawing (752 x 1231)
