P.W.S. 12, 14

1929

Back to the Virtual Aircraft Museum
  TRAINERVirtual Aircraft Museum / Poland / P.W.S.

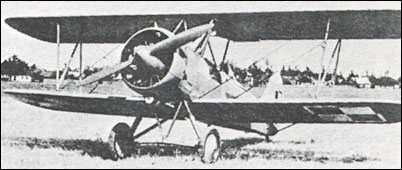

P.W.S. 12, 14

Contemporary with the P.W.S.10, a less complicated version with a 179kW Gnome-Rhone Titan engine was designed specifically for use as a single-seat fighter trainer. Designated P.W.S.11, this did not progress beyond the prototype stage, but a two-seat intermediate- trainer project designated P.W.S.12 was developed from it, its biplane configuration resulting from little more than the addition of a new lower wing to the existing airframe. However, the first two P.W.S.12 prototypes, flown in November 1929, had reduced-span staggered biplane wings and introduced a 164kW Skoda-built version of the Wright J-5 Whirlwind radial engine. Successful testing led to an order for production P.W.S.12s, but a requested change from wooden to steel-tube fuselage structure, plus the incorporation of some improvements, resulted in this aircraft being redesignated P.W.S.14 at a later stage.

Specification
 MODELP.W.S.14
 WEIGHTS
  Take-off weight1100 kg2425 lb
 DIMENSIONS
  Wingspan9.0 m30 ft 6 in
 PERFORMANCE
  Max. speed190 km/h118 mph
