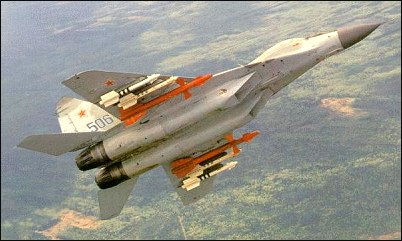

Mikoyan/Gurevich MiG-29

Designed to a 1972 requirement intended to replace the MiG-21, MiG-23, Su-15 and Su-17 with the Soviet air force, the MiG-29, originally revealed in a US satellite photograph and designated 'Ram-L', made its first flight on 6 October 1977. After many design changes the first deliveries of 'Fulcrum As' were made to Soviet Frontal Aviation in 1983 and the type was declared operational early in 1985.

The first hard information became available when the aircraft was examined by Western authorities during an exchange visit to Finland by a MiG-29 unit in 1986. Configured similarly to its F/A-18 Hornet rival, the supersonic and extremely agile MiG-29 has a highly swept (45°) low-mounted wing above twin reheated turbofan engines buried in the fuselage but under the wing. The tail-plane has two vertical and two horizontal stabilisers. A conventional landing gear has twin steerable nosewheels and large single low-pressure mainwheels.

More than 600 MiG-29s are now in service with the former Soviet forces, and the type has been exported to Cuba, Czechoslovakia, East Germany (now serving with the Luftwaffe), Iran, Iraq, North Korea, Poland, Romania, Syria, Yugoslavia and India, where the type is licence-built by Hindustan Aeronautics for the air force as the Baez (Eagle).

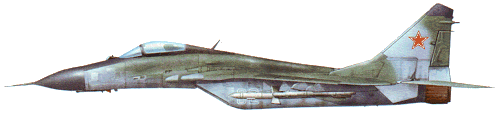

Mikoyan/Gurevich MiG-29

Specification
 CREW1
 ENGINE2 x Klimov RD-33, 81.4kN
 WEIGHTS
  Take-off weight27215 kg59999 lb
  Empty weight15000 kg33070 lb
 DIMENSIONS
  Wingspan11.4 m37 ft 5 in
  Length17.3 m57 ft 9 in
  Height4.7 m15 ft 5 in
  Wing area38.0 m2409.03 sq ft
 PERFORMANCE
  Max. speed2445 km/h1519 mph
  Ceiling17000 m55750 ft
  Range w/max.fuel2900 km1802 miles
  Range w/max payload630 km391 miles
 ARMAMENT1 x 30mm cannon, 3000kg of weapons

3-View
Mikoyan/Gurevich MiG-29A three-view drawing (1687 x 1300)
