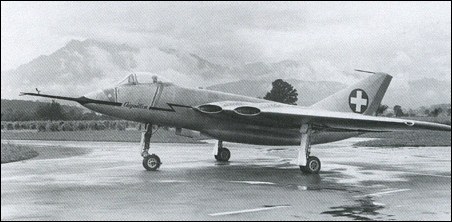

F + W N-20.10 Aiguillon

1952

Back to the Virtual Aircraft Museum
  Virtual Aircraft Museum / Switzerland / Federal Aircraft Factory

F + W N-20.10 Aiguillon

There is no text information for this aircraft at the moment.

F + W N-20.10 Aiguillon

Specification
 ENGINE4 x 960kg Swiss Mamba SM-01
 WEIGHTS
  Take-off weight9000 kg19842 lb
 DIMENSIONS
  Wingspan12.6 m41 ft 4 in
  Length12.5 m41 ft 0 in
  Height3.13 m10 ft 3 in
  Wing area54.0 m2581.25 sq ft
 PERFORMANCE
  Max. speed1000 km/h621 mph

3-View
F + W N-20.10 AiguillonA three-view drawing (800 x 515)

Comments
bombardier, e-mail, 24.05.2011 14:12

The aircraft appeared before the F-5 or the Mirage.The reason for not being taken into production was that the Swiss prefered the conventional Hawker Hunter

reply

deaftom, e-mail, 11.03.2011 05:37

I would think a four-engined fighter would have a rather high fuel consumption, thus severely limiting its range. The added mechanical complexity, especially with early-1950s jet engine technology, also meant a good chance of some kind of engine failure on each flight. It's a good thing Switzerland, being a small country with no military ambitions beyond its own borders, doesn't require much range for its fighters....

reply

Kurt Jaeger, e-mail, 26.11.2010 15:47

Hi Fox,
there is no doubt that the N-20, had it ever reached series production, would have surprised the rest of the world. A deltawing aircraft with variable leading edge, a jettisonable and pressurized cockpit, head-up display and brake parachute was nowhere in sight.
The 4 engines, which were modified Armstrong Siddeley "Mamba" turbprop engines, had as another first, a fan and cold air afterburners. The exhaust could be reversed for added braking action. Take-off and landing were possible on grass runways and its weapon bay arrangement with quick change ammunition containers as well as rocket an bomb bay was unique.
Politics got in the way to complete this magnificent project.

reply

Marco, e-mail, 31.08.2010 01:15

Hello Aero-Fox, Yes you are right the N-20.10 is a tailess 4 Engine Aircraft, to be precise it is a 4 Engiend 8 afterburner aircraft . every main engine feedet 2 reheater but not all air from the mainengin was feed to them on the back of a wing it had 6 "nozzles" The engins was a product from the Sulzer company. The N-20.10 had 2 in build canons it had a fast chanchable weapon belly , one belly with 4 30mm canons, or a belly with unguidet rockets (on 2 rotary launcher) or a belly with bombs or one with cameras and flairs.The N-20.10 had a ejection cokpit (like the F-111). Unfortunatly the engins of the Prototyp had not the guarenteed thrust.To build engines with enough power additional money of 3000000Fr over the budget would bee nececary. The goverment stopt the project. The goverment also refused to give permision for a flight even the workers of the N-20.10 had declared to take full responsabilety ,paying all fuel by theyer own and give theyer freetime for the maiden flight. today the N-20.10 is net to the FFA P-16 in the Air force Museum at Dübendorf AFB

reply

lxbfYeaa, e-mail, 14.03.2024 Marco

20

reply

leo rudnicki, e-mail, 28.04.2009 19:40

Looks a little Vought Cutlassy. Wonder if the nose gear was any better.

reply

Nikos J. Farsaris, e-mail, 27.12.2008 18:55

Yes Aero-Fox!
Only in prototype form since F-5Es and Mirage IIIs were actually prefered

reply

Aero-Fox, 13.05.2008 00:17

Am I mistaken, or is this a FOUR ENGINED tailess FIGHTER aircraft?

reply
