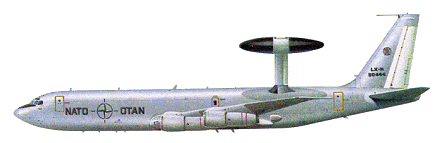

Boeing E-3A Sentry

The requirement for an Airborne Warning And Control System (AWACS) aircraft was outlined by the US Air Force in 1963, at which time it was envisaged that a force of up to 64 of these specially-equipped aircraft would be needed. They were then considered essential to alert US air defences of approaching attack by manned or unmanned air vehicles of all classes, and to act as mobile control centres of unfixed geographical position, able to.control all national air activities in both conventional or nuclear combat operations. However, since the origination of the concept, economic considerations have made it necessary to reduce considerably the number of aircraft to be acquired initially.

The resulting Boeing E-3A Sentry is essentially a flexible, jamming-resistant, mobile and survivable radar station, plus a command, communications and control centre, all contained within the well-proven airframe of a Boeing 707. In addition to its long-range high- or low-level surveillance capability, an AWACS aircraft can provide all-weather identification and tracking over all kinds of terrain, and the 22nd and subsequent aircraft also have a maritime surveillance capability. These aircraft can command and control the entire air effort of a nation, embracing interception, interdiction, reconnaissance and strike, plus the back-up roles of airlift and support.

Two main areas of use have been planned by the USAF, with the Tactical Air Command (TAC) using its AWACS aircraft for airborne surveillance, and as a command centre for the rapid deployment of TAC forces. A differing role is envisaged for the same aircraft by Aerospace Defense Command (ADC), who regard the AWACS aircraft was 'hard to find' command and control posts. (ADC has now become a component of TAC, but the two basic E-3A missions remain substantially unaltered.)

Boeing was the successful one of two contenders for the supply of an AWACS aircraft, being awarded a contract on 23 July 1970 to provide two prototypes under the designation EC-137D. The company's proposed AWACS was based on the airframe of the Boeing Model 707-320B commercial transport, and the prototypes were modified in the first place to carry out comparative trials between the prototype downward-looking surveillance radars designed by the Hughes Aircraft company and Westing-house Electric Corporation. These tests continued into the autumn of 1972, and on 5 October the USAF announced that Westinghouse had been selected as prime contractor for the advanced radar that was to be the essential core of the AWACS. This has the difficult task of seeking and identifying low-flying targets at ranges as great as 370km, and in the case of high-altitude attack at even greater ranges.

The USAF had acquired an extensive knowledge of the operation and capabilities of the Boeing Model 707, especially in the form of the EC-135 variants which have served well and long. It was clear that with far more advanced equipment the same aircraft could provide the desired potential, thus ensuring that equipment acquired for and experience derived from the EC-135 would offer an important and reliable contribution to the AWACS concept.

Very little modification of the basic 707-320B airframe was needed to make it suitable for the new role. Most important, and an external identification feature par excellence, is the large rotodome assembly carried on two wide-chord streamlined struts, which are secured to the upper rear fuselage. The remainder of the essential avionics antennae are housed within the wings, fuselage, fin and tailplane. New engine pylon fairings are provided for the more powerful turbofan engines of the pre-production EC-137Ds, and of the production aircraft which were designated E-3A and given the name Sentry. Internal modifications included strengthening of the cabin floor, provision of MPC (multi-purpose console) and other equipment bays, and addition of a crew rest area. Basic operations require a flight crew of four plus 13 AWACS specialist officers, but this number can vary for defence and tactical missions, and other personnel can be cer-ried for systems management and radar maintenance.

Not surprisingly, the mass of avionics equipment needed for the E-3A to fulfil its AWACS role has required the installation of extensive cooling and wiring systems. The cooling and air-condition ing systems are complex to ensure an ideal working environment for crew and equipment. Thus, liquid cooling protects the radar transmitter, housed in the aft cargo hold, and a conventional air-cycle and ram-air environmental control system provides for crew comfort and the safe operation of other avionics equipment. There is also a large demand for electrical power, which is supplied by generators with a combined output of 600 kVA. The over-fuselage rotodome is 9.14m in diameter and has a maximum depth of 1.83m. This incorporates the AN/APY-1 surveillance radar and IFF/TADIL C antennae. During operational use the rotodome is driven hydraulically at 6 rpm, but in non-operational flight is rotated at one twenty-fourth of this speed to ensure that low temperatures do not cause the bearing lubricant to congeal and prevent normal operation when required.

The current Westinghouse radar, installed first in the 22nd Sentry, and scheduled to be updated in earlier aircraft, can function as a pulse and/or pulse-Doppler radar, and is operable in six different modes. The data processing capability of the first 23 E-3As is provided by an IBM 4 Pi CC-1 high-speed computer. It has a processing speed of some 740,000 operations per second, main memory capacity of 114,688 words, and a mass memory of 802,816 words. The IBM CC-2 computer, introduced on the 24th production aircraft, has a main memory capacity of 665,360 words. Also introduced on this aircraft is the newly-developed Joint Tactical Information Distribution System (JTIDS). This provides a high-speed secure communications channel for up to 98,000 users, and one that is less vulnerable to jamming.

The first production E-3A was delivered on 24 March 1977 to the USAF's 552nd Airborne Warning and Control Wing, based at Tinker AFB, Oklahoma. The current force of AWACS aircraft for service with the USAF is 34. In addition, a force of 18 generally similar aircraft was acquired by NATO. Initial deliveries of NATO's operational E-3As, which are based at Geilenkirchen, West Germany, were made during 1982. They differfrom their USAF counterparts by comparatively minor changes in installed avionics to meet NATO communications requirements. They also introduced underwing hardpoints to carry self-defence weapons, but these mountings can be used optionally to carry ECM pods. The Sentry has also been sold to Saudi Arabia, France and the United Kingdom, all export aircraft being powered by CFM56 high bypass ratio turbofans.

Boeing E-3A Sentry

Specification
 CREW17
 ENGINE4 x Pratt & Whitney TF-33-PW-100/100A turbofans, 93.3kN
 WEIGHTS
  Take-off weight147418 kg325003 lb
 DIMENSIONS
  Wingspan44.42 m146 ft 9 in
  Length46.61 m153 ft 11 in
  Height12.6 m41 ft 4 in
  Wing area283.35 m23049.95 sq ft
 PERFORMANCE
  Max. speed853 km/h530 mph
  Ceiling8840 m29000 ft
  Range w/max.fuel12000 km7457 miles

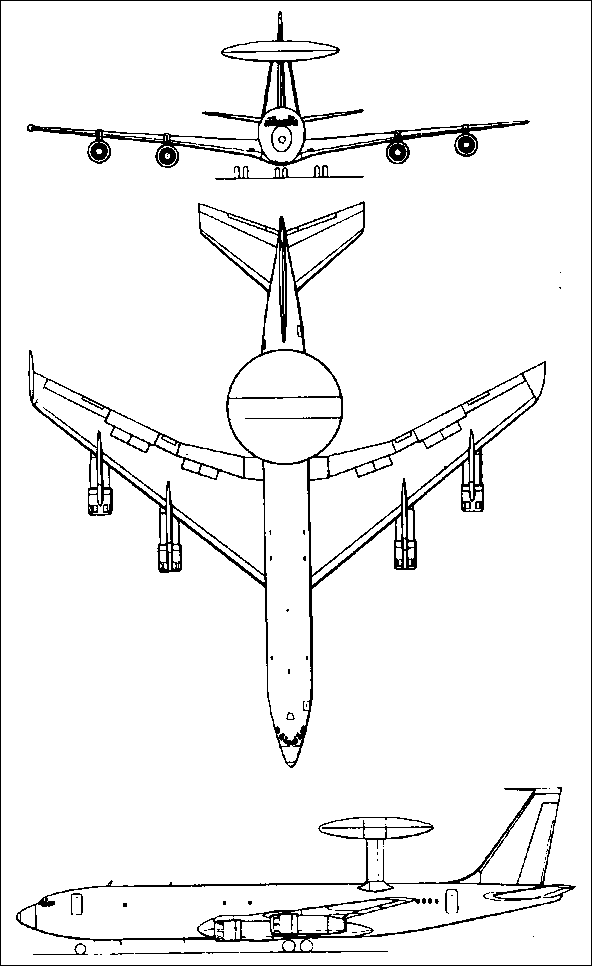

3-View
Boeing E-3A SentryA three-view drawing (592 x 966)
