Curtiss HA-2

1918

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / USA / Curtiss

Curtiss HA-2

The third HA float fighter prototype embodied considerable redesign as the HA-2. Powered by a 12- cylinder Liberty 12 water-cooled engine, like the preceding prototypes, the HA-2 had longer-span wings of marginally increased chord and gap, the upper wing being raised clear of the fuselage, the decking of which was lowered. The radiator was redesigned, but cooling problems were encountered and although the HA-2 proved more docile than the lighter HA-1, it possessed insufficient promise to warrant further development.

3-View

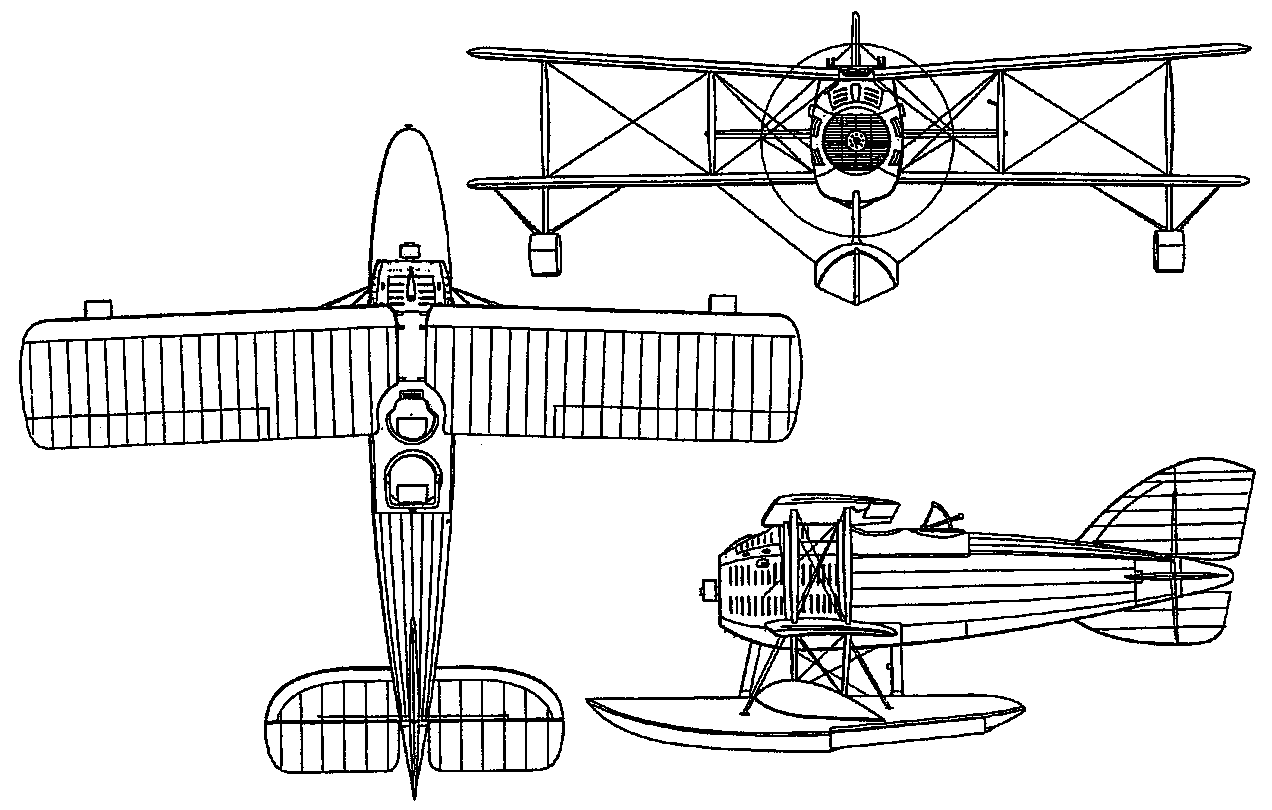

Curtiss HA-2A three-view drawing (1272 x 810)

Specification
 WEIGHTS
  Take-off weight1772 kg3907 lb
  Empty weight1336 kg2945 lb
 DIMENSIONS
  Wingspan12.80 m42 ft 0 in
  Length9.37 m31 ft 9 in
  Height3.48 m11 ft 5 in
  Wing area45.52 m2489.97 sq ft
 PERFORMANCE
  Max. speed190 km/h118 mph
