In December 1942, nine US aircraft manufacturers received
a Request for Proposals from the Bureau of Aeronautics
for a single-seat shipboard fighter combining
piston engine and turbojet, the former to be the main
power source and the latter to provide boost in climb
and combat. The Ryan Model 28, designed by Benjamin
T Salmon and William T Immenschuh, was selected as
winning contender by the Bureau and three prototypes
were ordered on 11 February 1943 as XFR-1s. A low-wing, cantilever monoplane of classic design, the
XFR-1 was the first carrier aircraft designed from the
outset to use a laminar-flow aerofoil and the first US
Navy aircraft to have an entirely flush-riveted exterior
and metal-skinned movable control surfaces. Power
was provided by a 1,350hp Wright R-1820-72W Cyclone
nine-cylinder air-cooled radial and, in the rear fuselage,
a 726kg General Electric I-16 (later redesignated
J31) turbojet. Proposed armament consisted
of four 12.7mm machine guns with provision
for a 454kg bomb under port inboard wing
panel. Other features were hydraulically-folding outer
wings and a tricycle undercarriage. A contract for 100
production FR-1s was placed on 2 December 1943, the
first XFR-1 flying seven months later, on 25 June 1944,
with only the piston engine installed. The turbojet was
added a few days later. Initial flight tests led to the
major redesign and enlargement of the vertical tail and
lowering of the horizontal tail. On 31 January 1945, by
which time a number of series FR-1s had been completed
and were under test, a contract was placed for
600 FR-2s which were to differ in having the R-1820-
74W engine of 1,500hp with water injection. In the
event, neither the FR-2 nor the XFR-3 was to be built,
the latter being intended to mate the 907kg General Electric I-20 turbojet with the -74W
piston engine. The XFR-4, on the other hand, entered
flight test in November 1944. Utilising the 19th FR-1 production
airframe, this replaced the J31-GE-3 turbojet
with a 1542kg Westinghouse J34-WE-22,
discarded the wing root intakes of the FR-1 in favour of
flush inlets in the sides of the forward fuselage, and had
the aft fuselage extended by 20cm. It was found,
however, that the thrust of the J34 was too great to permit
efficient use of both engines and the XFR-4 programme
was discontinued accordingly.
the FR-1 to the US Navy began in March 1945, the Fireballs
equipping one squadron (VF-66) and completing
carrier qualification in May (aboard the USS Ranger).
After VJ-Day, the 34 FR-1s remaining to be delivered
were cancelled, together with all 600 FR-2s. On 18
October 1945, VF-66 was de-commissioned and its
FR-1s transferred to VF-41 (redesignated VF-1E on 15
November 1946) which continued to fly them until mid-
July 1947. Only 17 of the 66 FR-1s built saw squadron
usage, the remainder being assigned for various test programmes.
FACTS AND FIGURES
© The piston engine was mainly
used for take-offs and landings
and was often shut down in flight.
Many photos show FR-1s cruisin
along with the propeller feathered.
© Due to its (relatively) high-speed
dash capability, the Fireball was
considered for use in defence
against kamikaze attacks. The war
ended just as the first squadron
was becoming operational.
© The Fireball had a laminar-flow
wing optimized for high speed
flight. This was the first carrier-based
fighter designed from the
outset to have such a wing.

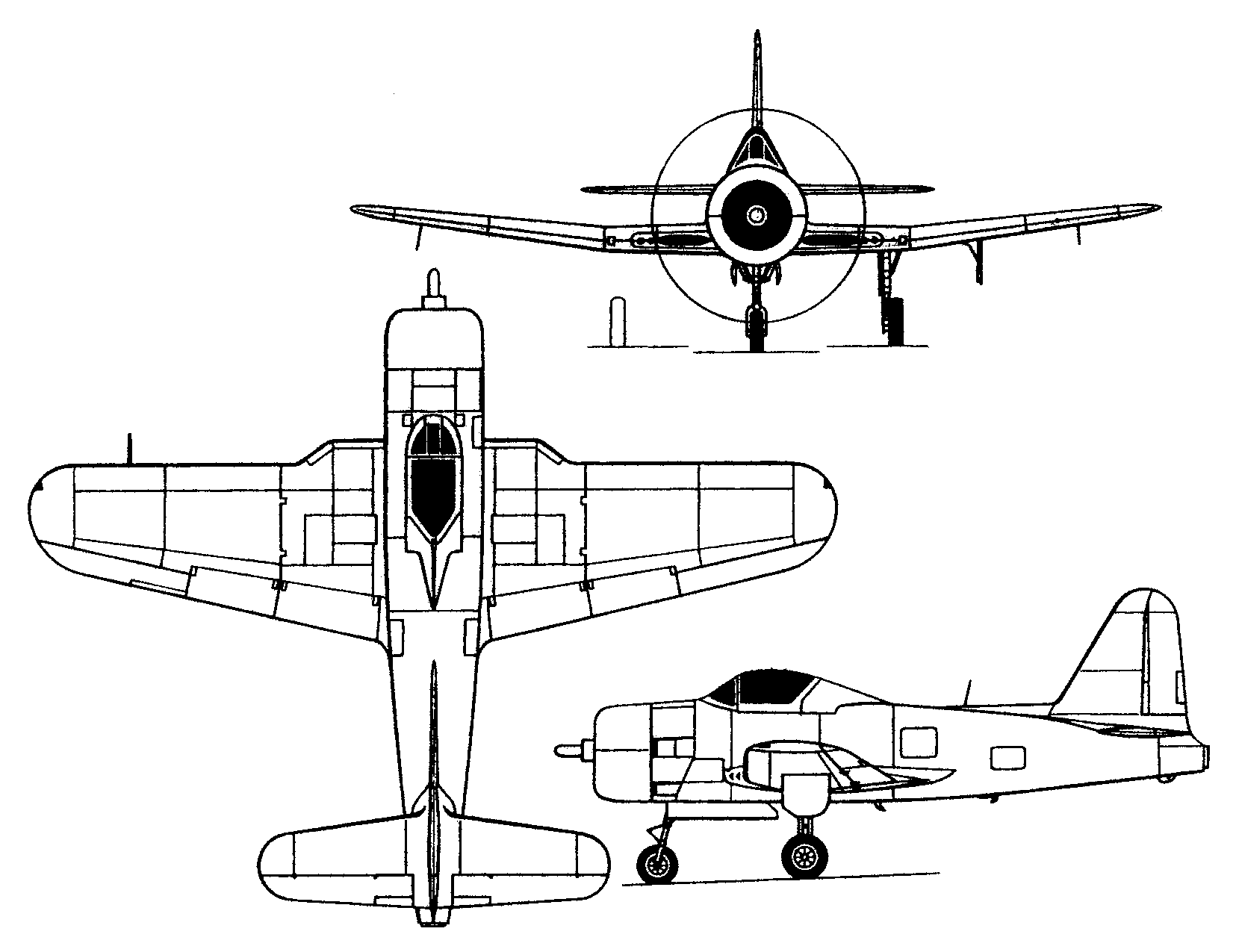

|A three-view drawing (1655 x 1275)|
| Take-off weight||5285 kg||11651 lb|
| Empty weight||3488 kg||7690 lb|
| Wingspan||12.19 m||40 ft 0 in|
| Length||9.85 m||32 ft 4 in|
| Height||4.24 m||14 ft 11 in|
| Wing area||25.54 m2||274.91 sq ft|
| Max. speed||686 km/h||426 mph|
| Range||1658 km||1030 miles|
