Back Gluhareff EMG-300
1992

Gluhareff EMG-300

Eugene M. Gluhareff was born in St. Petersburg, Russia in 1916 immigrating to the United States with his family via Finland in the early 1920's.

An Aeronautical Engineer graduate of Rensselaer Polytechnic Institute in Troy, New York, he is a very well known jet engine and helicopter designer and inventor. His extensive experience was acquired over many years of association with leading companies in the fields of design, research and development.

He has been a part of helicopter development since its beginning in 1940 with Sikorsky Aircraft Corporation in Bridgeport, Connecticut as a primary design engineer and project engineer. He worked directly under Mr. Igor I. Sikorsky and Mr. Igor A. Sikorsky, Chief of Aerodynamics. It was there he invented and developed the Pulse Jet Engine, a one-man single bladed jet helicopter which he test flew himself and also a Delta Wing Convertiplane for the United States Airforce.

In 1950 he moved to California and joined the American Helicopter Company in Manhattan Beach as a project engineer on a pulse jet powered helicopter (Top Sergeant). He was promoted to Chief of Preliminary Design and there designed the XH-26 One-Man-Jet Helicopter for the U.S.A.F.. Following this term with American Helicopter, he worked with Rotorcraft Corporation in Glendale, California as Design Engineer and was engaged in the redesign of a rocket powered one-man-helicopter for the U.S. Navy.

It was during this time that Mr. Gluhareff pioneered the use of liquid propane as a fuel for jet engines and a series of ultra-light portable one-man-helicopters, MEG-1X, MEG-2X and MEG-3X which were designed and built by his own company, Gluhareff Helicopters Corporation. All of which were powered by the G8-2 Pressure Jet Engine on the blade tip and test flown by himself.

In the early sixties, he was employed by the U.S. Navy at the Naval Ordinance Test Station in China Lake, California as an Aerospace Engineer FS-14 and Project Engineer on Rotary Drones. In 1964 he joined the Douglas Aricraft Company, Missile and Space Division as Design Engineer Scientist on the S-4 stage of the Saturn Rocket used on NASA's Apollo Project. During this time he participated in the launching of four Saturns. Later he worked at McDonnel Douglas Aircraft in Long Beach, California as a Senior Design Engineer in Advanced System for Special Projects researching and testing rocket engines. There he became a specialist in the design of rocket stabilization systems for ejection seats and capsules.

In 1972 Mr. Gluhareff returned to research and design under his own company name of EMG Engineering in Gardena, California. There he continued his work on the G8-2 Pressure Jet Engines which ranged from five pounds of thrust to 700 pounds of thrust. To further promote the study of aerodynamics and jet propulsion, Mr. Gluhareff designed and placed in universities throughout the country the Gluhareff GTS-15 Teaching Stand. He also had the G8-2 Pressure Jet Engine displayed as a working exhibit in the California Museum of Science and Industry in Los Angeles. The G8-2 Jet Engine had the honor of gracing the cover of Mechanics Illustrated in May of 1973 and again in January 1975 in the Jet Powered Go-Kart.

Mr. Gluhareff designed, built and tested his own one-man tip jet helicopter, the EMG-300 in the early 90's. Its successful test flight marked the realization of Mr. Gluhareff's lifelong dream to design what he called a "Flying Motorcycle". He had several patents issued and applied for, for his inventions. Some of which are the G8-2 Jet, Valveless Pulse Jet, Portable and One-Man Helicopters, Flying Platform, Rotorcar, Convertiplane, Rocket Stabilization Unit and others.

Gluhareff Helicopter Company

Gluhareff EMG-300

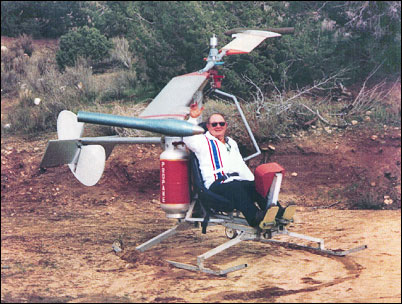

Designed in the early 1990s the EMG-300 is a homebuilt design with a very professional pedigree. Its builder, Eugene M Gluhareff had a long career of helicopter, jet, and rocket development. He first worked for Sikorsky Aircraft in the 1940s on helicopter design, later he worked for the American Helicopter Company on the design for a rotor-tip pulsejet powered helicopter for the U.S. military. He later joined the Douglas Aircraft Company and worked on several rocket projects including the Saturn rocket for the Apollo program. Along the way he invented the pressure jet engine that powers the EMG-300. This engine uses propane for fuel and contains no moving parts. In the 1970s he started his own company to continue development of the pressure jet and vehicles to make use of it. His main interest was the use of the jets for rotor-tip jet powered helicopters including several backpack helicopter designs, and the EMG-300. Other uses have included powered hang gliders and even a go-kart. The EMG-300 was his last design before his death in 1994, it had completed an initial series of test flights, but was not completely tested at the time of his death.

Arizona Aerospace Foundation

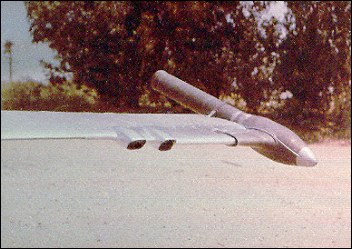

G8-2 pressure jet engine

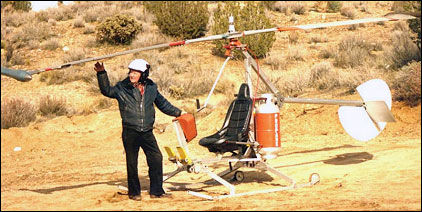

Inventor of the G8-2 Pressure Jet Engine, Eugene M. Gluhareff, designed, built, and tested this one-man tip jet helicopter in the early '90s. Its successful test-flight marked the realization of Mr. Gluhareff's lifelong dream to design what he called a "flying motorcycle." Eugene M. Gluhareff is shown in the photo standing by the first-generation prototype around the time of its first test flight.

http://www.rqriley.com

Technical data for EMG-300

Engine:2 x G8-2-20H jet engines 10kg of thrust each, fuel: liquid propane, fuel capacity: 70 litres, rotor diameter: 7.3m, fuselage length: 4.57m, height: 2.1m, empty weight: 109kg, take-off weight: 208kg, maximum speed without canopy (est.): 112km/h, maximum speed with canopy (est.): 193km/h, range: 280km, endurance: 2.5h

Comments
dhere38@gmail.com, 15.01.2024reply

I had the pleasure of meeting Mr. Gluhareff at his home in the hills of Hesperia, California. A friend of mine lent me his fatboy for the day and i went of on an adventure to meet the man. I was trying to put together an experimental one man helicopter from plans I had purchased from Rotor-Craft. But I needed to make sure the tip jets were legitimate. I think his actual address was on the plans. Long and short of it is that i found the man at his home. This was around 1990 so he was on in years and his yard was littered with the most amazing inventions that we've all seen in images. He met me at the door and was very kind. He took me to his workshop and showed me the tip jets that worked with touch of a button. There on the wall hanging was the famous backpack helicopter I had seen in my comics as a kid...it was amazing and he was amazing but I could see that would have been very easy to overstay my welcome and didn't want to do that. He was a brilliant man and I'm very lucky to have met him.

Joffre Benavides, e-mail, 27.02.2023reply

Hi , was a amazing inventtion, I need buy the drawings for a two people, Gluhareff helicopter, can you help me please ?

Joffre Benavides, e-mail, 27.02.2023reply

Hi , was a amazing inventtion, I need buy the drawings for a two people, Gluhareff helicopter, can you help me please ?

Joffre Benavides, e-mail, 27.02.2023reply

Hi , was a amazing inventtion, I need buy the drawings for a two people, Gluhareff helicopter, can you help me please ?

Joffre Benavides, e-mail, 27.02.2023reply

Hi , was a amazing inventtion, I need buy the drawings for a two people, Gluhareff helicopter, can you help me please ?

Андрей Бормотов, e-mail, 22.11.2017reply

Вы не против будете, если я позаимствую двигатель Глухарева для своих нужд? Если возражений не будет, прошу прислать мне чертежи этого замечательного изделия! Благодарю.

alfredo reyes, e-mail, 09.08.2010reply

cuanto me gustaria saber el sistema de rotor especial que usa este aparato asi como el sistema electrico para encendido de las bujias, son detalles que se quedan en el olvido este hombe es un gran cientifico de la aviacion.

alfredo reyes, e-mail, 13.08.2010reply

Roy Conrad, usconrad = tds, Sir / Madam cunatgo like me could you help in making the rotor
head can not understand how to send gas to the thrusters to be in motion the blades be grateful for their considerable assistance. att. Alfredo Reyes

alfredo, e-mail, 16.05.2010reply

He conocido varios tipos de miniaviones si asi se pudieran llamar,a partir de los 90 se vieron muchos de estos tipos incluso con alas delta...por alla,por el caribe.de uso para dos personas con un hdroflotador.tambien llegaron los de un pasajero que tenian un motor de la parte trasera y el piloto vijaba en una silla al descubierto....Pero me interesaria mucho las informaciones de ingenieria e instalacion de electronica para localisacion y rescate.acostatropical-usa

Валерий, e-mail, 21.01.2015reply

Где производят такие аппараты??? Можно хоть взглянуть,пощупать ????

Roy Conrad, e-mail, 08.12.2009reply

Dear curator, in October of 2009 I designed a tip-jet helicopter of which I thought there was none other of its kind. Then I happened to read the April 1988 edition of Kitplanes and saw Mr. Gluhareff's helicopter. My design has a radically different fuel delivery system, a tail rotor, and swash-plate assembly. If you are interested, contact me.

Bob Job, e-mail, 30.11.2008reply

I made a pressure jet out of some bees and a tin can

jeremy, e-mail, 28.11.2008reply

I would like find out if possible, how to build my own helicopter inexpensively. Or how to purchase one of your helicopters. also how bout a two man helicopter you know a seat for my wife. Thank you and have a great day.

markham, e-mail, 15.11.2008reply

how many of EMG300.s are there flying do you know ?? and how much does it cost for the jet and blade kit??

Betsy Gluhareff, e-mail, 18.04.2008reply

RIP Uncle Eugene I'll never forget our visit and my thrill ride..I have built a site for Grandfather (Your Dad) Michael E. Gluhareff at www.sikorsky.ws

Darren Thomas, e-mail, 15.01.2024 Betsy Gluhareff

I was lucky enough to meet your uncle in 1990. He was so courteous and invited me into his home and workshop. He let me play with the tip jets and gave me a tour. He was brilliant and much more. I think folks made a lot of money off his work, ideas and inventions and still are. I also don't think he got the credit he deserved while others were happy take ownership. He and I spoke at length as i recall about the hoist /winch lift he perfected for airlifts. Extensive use in all branches of the military to this day are a testament to his genius. Be proud!

Darren Thomas

reply

Daniel van der wilt, e-mail, 20.08.2007reply

Congratulations with your great project!
Will this machine still autorotate at the needed speed or do the engines have to run? In the last case, i would consider an extra axle where the engines become mounted on with a possibility for the rotorblade to run free.
The engines can be mounted closer to the main axle and become integrated horizontally in an "s" shape.
I think about building 2 Lockwood hiller engines in the shape of an "s" and to mount them 20 cm under the rotorhead.
The detonation chamber of both of the engines will be located near the main axle.And the rotorblade will be able to run free.
Greetings from Daniel Bonaire

babak, e-mail, 08.11.2007reply

your web sit is amazing
i am fascunated by the experiences which you have had.
with appreciation toward your works i would like to know is your disignes practical?
i will be glad if you could send me some pictures of you flight by this extraordinary flying machine


best regard.
babak
kurdistan
