Avro 521

1916

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / United Kingdom / Avro

Avro 521

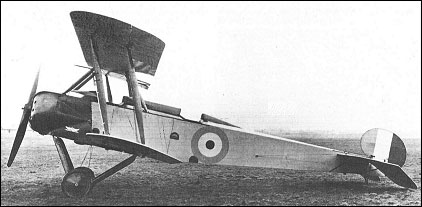

The Avro 521 two-seat fighter, which was flown late in 1915, was something of a hybrid in that it embodied a number of Avro 504 components. Powered by a 110hp Clerget 9Z nine-cylinder rotary, the prototype had provision for a free-mounted 7.7mm Lewis gun fired from the rear cockpit. The prototype underwent official trials early in 1916, and 25 aircraft were ordered for the RFC, but this contract was subsequently cancelled, and there is no evidence that any Avro 521 other than the prototype (which crashed at Upavon on 21 September 1916) was built.

Specification
 WEIGHTS
  Take-off weight905 kg1995 lb
  Empty weight522 kg1151 lb
 DIMENSIONS
  Wingspan9.14 m30 ft 0 in
  Length8.58 m28 ft 2 in
  Wing area24.71 m2265.98 sq ft
 PERFORMANCE
  Max. speed145 km/h90 mph
