Avro 533 Manchester

There is no text information for this aircraft at the moment.

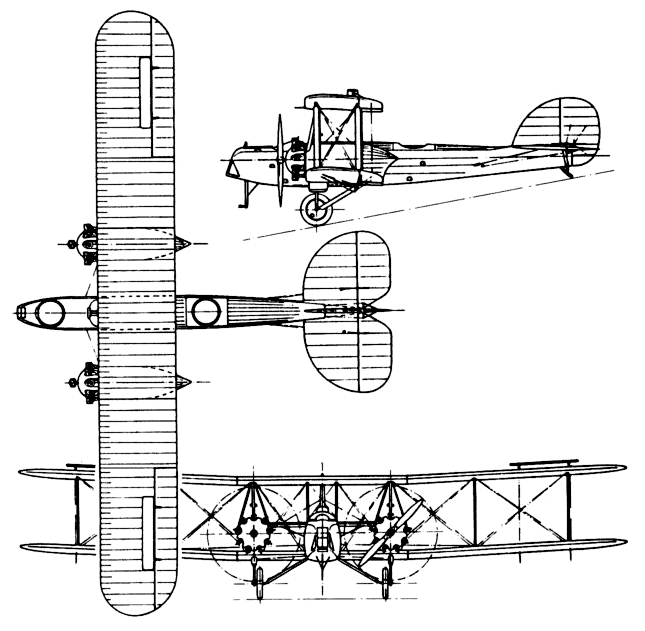

3-View
Avro 533 ManchesterA three-view drawing (645 x 631)


Specification
 MODELAvro 533 Mark I
 CREW3
 ENGINE2 x 320hp ABC Dragonfly I 9-cylinder air-cooled radial engines
 WEIGHTS
    Take-off weight3355 kg7397 lb
    Empty weight2219 kg4892 lb
 DIMENSIONS
    Wingspan18.29 m60 ft 0 in
    Length11.28 m37 ft 0 in
    Height3.81 m13 ft 6 in
    Wing area75.53 m2813.00 sq ft
 PERFORMANCE
    Max. speed209 km/h130 mph
    Ceiling5791 m19000 ft
 ARMAMENT2 x 7.7mm machine-guns, 400kg of bombs

Comments
Barry, 16.06.2016

There were three prototypes of this Avro 529 development built, the third model not having any engines, they were the Avro 533A Manchester Mk1 and the Avro 533A Manchester MkII. The original Mk1 was designed to take the ABC Dragonfly engine, but when this was not forthcoming the plane was fitted with 2 x 400 h.p Liberty engines thus making the Mk II fly first. The Dragonfly engines arrived eventually, but as we know elsewhere these just did not make the grade. The result being that the performance was far below expectations and Avro decided to cut their losses and abandoned the project. A passenger version the Avro 537 was still born.
