Avro 549 Aldershot
1922
Back to the Virtual Aircraft Museum
  MEDIUM/HEAVY BOMBERVirtual Aircraft Museum / United Kingdom / Avro

Avro 549 Aldershot

Three-seat heavy bomber of 1922 powered by a 485kW Rolls-Royce Condor III engine. Fifteen built for No 99 Squadron, RAF, serving between 1924 and 1926. Maximum bomb load 900kg. Maximum level speed 177km/h.

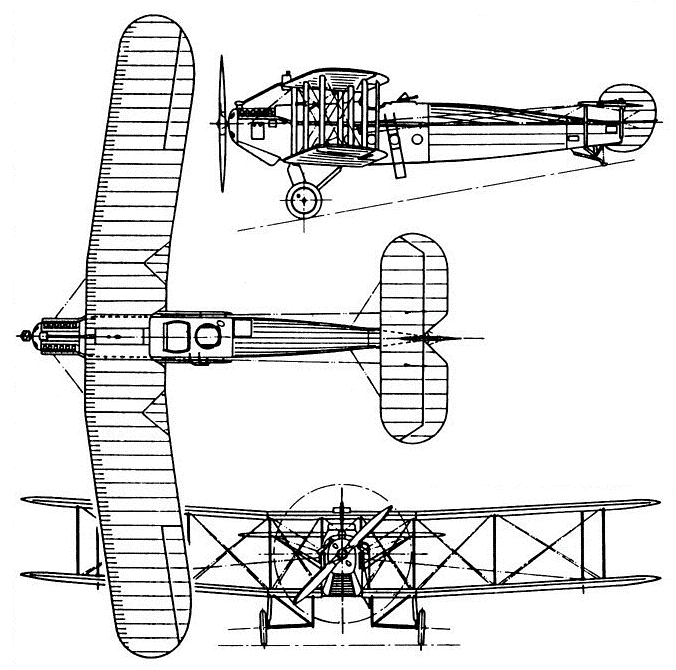

3-View
Avro 549 AldershotA three-view drawing (676 x 670)


Specification
 MODELMark III
 CREW4
 ENGINE1 x 650hp Rolls-Royce Condor III
 WEIGHTS
    Take-off weight4971 kg10959 lb
    Empty weight2865 kg6316 lb
 DIMENSIONS
    Wingspan20.73 m68 ft 0 in
    Length13.72 m45 ft 0 in
    Height4.65 m15 ft 3 in
    Wing area98.85 m21064.01 sq ft
 PERFORMANCE
    Max. speed177 km/h110 mph
    Ceiling4420 m14500 ft
    Range1006 km625 miles
 ARMAMENT3 x 7.7mm machine-guns, 4 x 240kg bombs or 8 x 110kg bombs
