Avro 534 / 543 / 554 Baby
1919
Back to the Virtual Aircraft Museum
  Virtual Aircraft Museum / United Kingdom / Avro

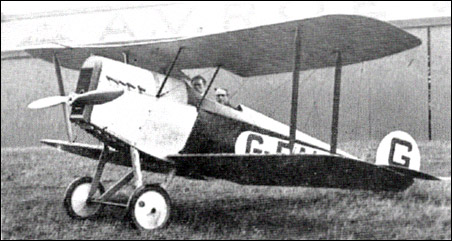

Avro 534

Britain's first post-World War I practical light aircraft was the Avro Baby, which was fitted with a 35hp Green engine. Eight were built and enjoyed considerable success;

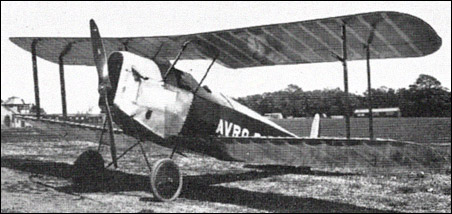

Avro 543


Specification
 MODELAvro 534
 ENGINE1 x 35hp Green
 WEIGHTS
    Take-off weight395 kg871 lb
    Empty weight280 kg617 lb
 DIMENSIONS
    Wingspan7.62 m25 ft 0 in
    Length5.33 m18 ft 6 in
    Height2.31 m8 ft 7 in
    Wing area16.72 m2179.97 sq ft
 PERFORMANCE
    Max. speed129 km/h80 mph
    Cruise speed113 km/h70 mph
    Range322 km200 miles

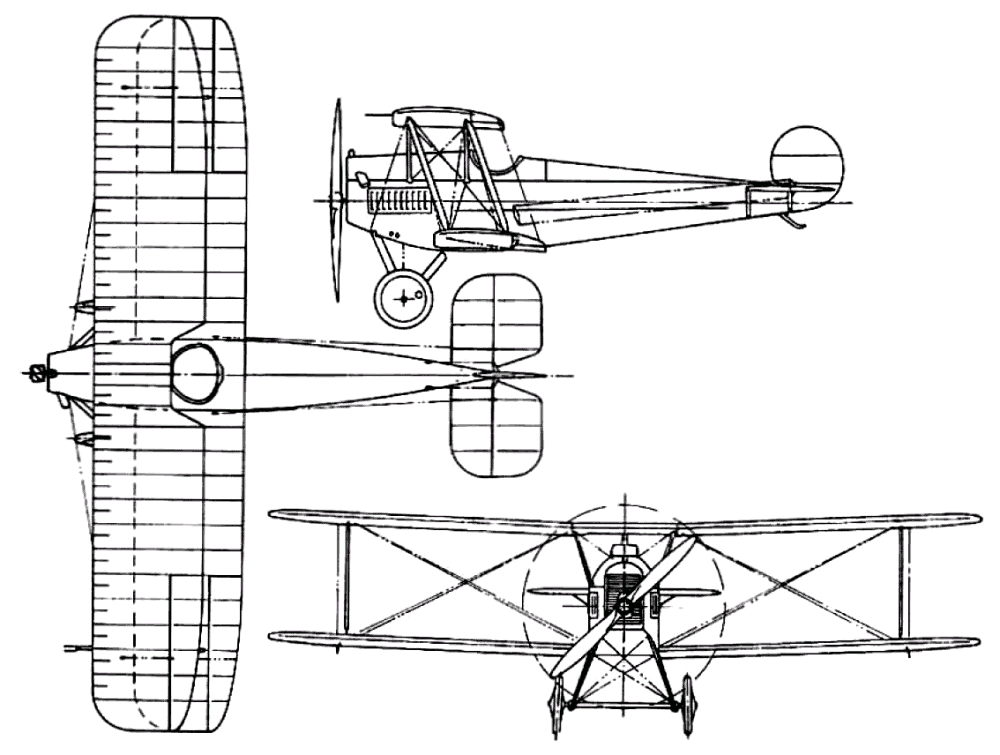

3-View
Avro 534A three-view drawing of Avro 534 (1000 x 755)

Comments
John Wilks, 15.11.2012

I am very interested in this type of aeroplane if anybody knows where I could get some plans for any additional information can you please drop me an e-mail

dA, 25.09.2010

I am trying to find some full size plans for this aircraft. Can anyone help?
