Avro 631 / 643 Cadet
1932
Back to the Virtual Aircraft Museum
  TRAINERVirtual Aircraft Museum / United Kingdom / Avro

Avro 631 Cadet

There is no text information for this aircraft at the moment.

Avro 643 Cadet


Specification
 MODELAvro 631
 ENGINE1 x 135hp Armstrong Siddeley Genet Major I
 WEIGHTS
    Take-off weight863 kg1903 lb
    Empty weight536 kg1182 lb
 DIMENSIONS
    Wingspan9.14 m30 ft 0 in
    Length7.54 m25 ft 9 in
    Height2.67 m9 ft 9 in
    Wing area24.25 m2261.02 sq ft
 PERFORMANCE
    Max. speed190 km/h118 mph
    Cruise speed161 km/h100 mph
    Ceiling3962 m13000 ft
    Range564 km350 miles

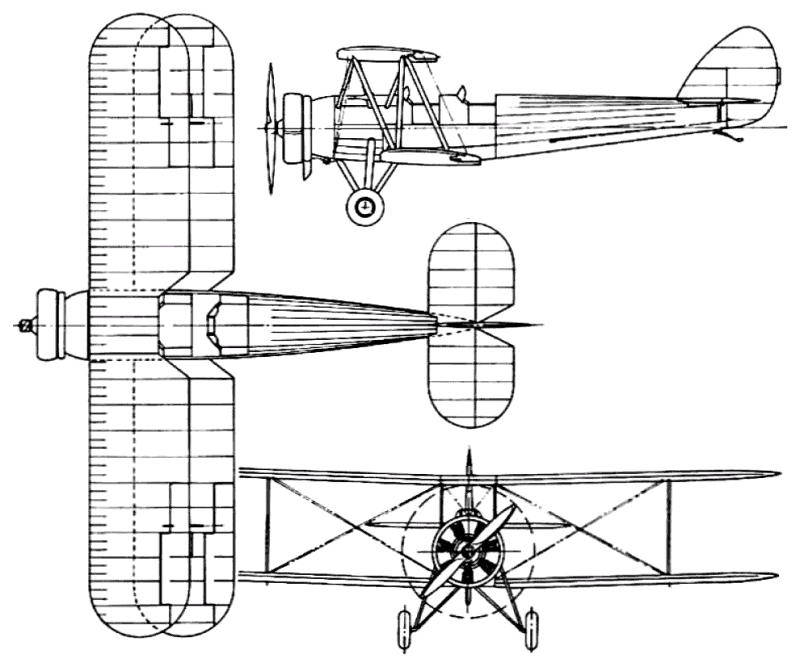

3-View
Avro 631 CadetA three-view drawing of Avro 631 Cadet (800 x 667)

Comments
michael reddy, 24.06.2014

do you have information on avro cadet K3199 that crashed near CRANWELL in 1938
