Avro Type G
1912
Back to the Virtual Aircraft Museum
  Virtual Aircraft Museum / United Kingdom / Avro

Avro Type G

There is no text information for this aircraft at the moment.

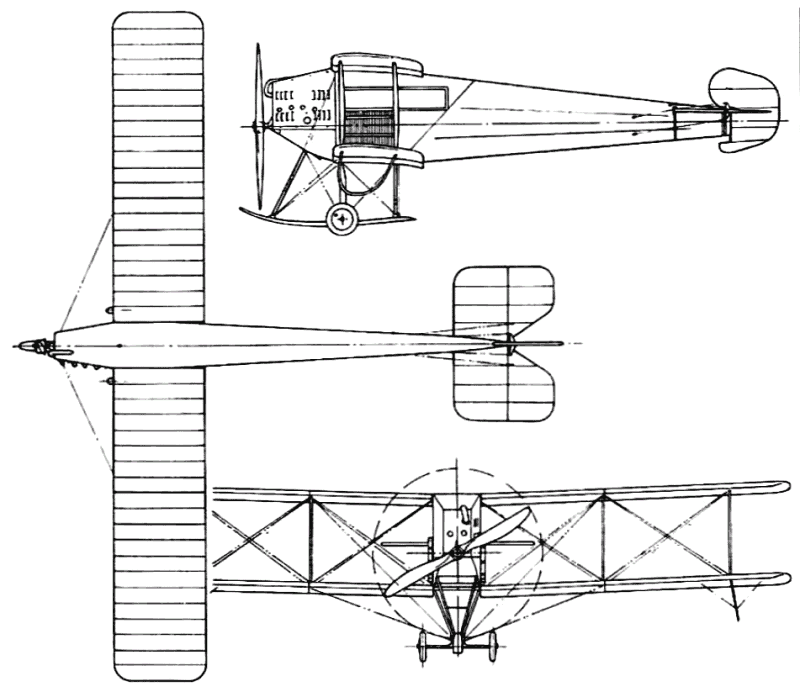

3-View
Avro Type GA three-view drawing (800 x 692)


Specification
 ENGINE1 x 60hp Green
 WEIGHTS
    Take-off weight814 kg1795 lb
 DIMENSIONS
    Wingspan10.74 m35 ft 3 in
    Length8.69 m29 ft 6 in
    Height2.97 m10 ft 9 in
    Wing area31.12 m2334.97 sq ft
 PERFORMANCE
    Max. speed100 km/h62 mph
    Range555 km345 miles

Comments
Barry, 15.06.2016

There were two prototypes put under construction the first is the one noted above with a Green D.4 in line and the second with an A.B.C. engine which was not delivered in time so that prototype was abandoned. The Type G had a totally enclosed cabin and was entered into 1912 British Military Airplane Competition where it failed to win but Avro did receive a 100. The Type G was the first aeroplane to survive a spin and to have that recovery witnessed.
