Avro 691 Lancastrian

1943

Back to the Virtual Aircraft Museum
  TRANSPORTVirtual Aircraft Museum / United Kingdom / Avro

Avro 691 Lancastrian

The Lancastrian was a high-speed long-range transport conversion of the Lancaster bomber. The first conversions were made in Canada by Victory Aircraft Ltd for Trans-Canada Air Lines and were operated by this company on behalf of the Canadian government on transatlantic mail and passenger services between Montreal and Prestwick. The Canadian Lancastrians were fitted with Packard-built Rolls-Royce Merlin engines and accommodated ten passengers.

Production of the Lancastrian was later undertaken by Avro and deliveries were made to the RAF, BOAC and British South American Airways Corporation. The four main variants of the aircraft were: the Lancastrian C.I, a nine-seat version of which 23 were produced for the RAF but all but two were subsequently operated by BOAC; Lancastrian C.2, which was similar to the C.I and 38 were produced for the RAF; Lancastrian 3, initially for BSAAC, accommodating 13 passengers (18 eventually delivered, most for BOAC); and the C.4 for the RAF, eight of which were delivered.

3-View

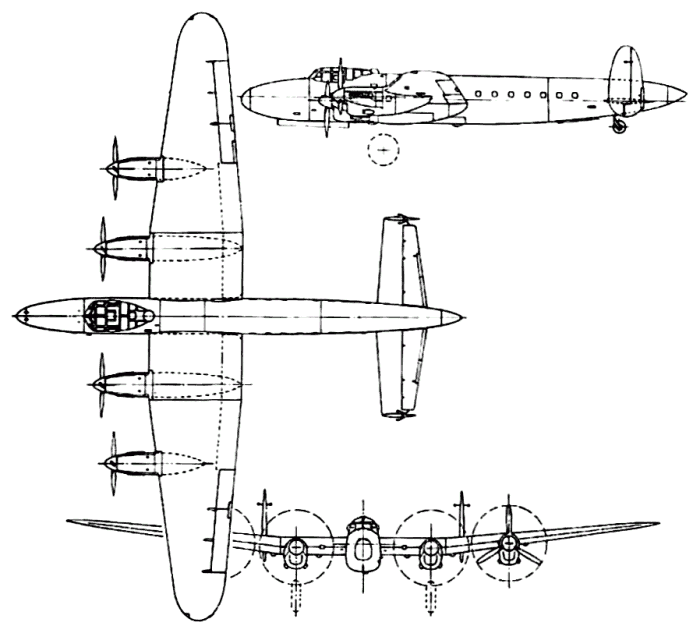

Avro 691 LancastrianA three-view drawing (700 x 633)

Specification
 MODELLancastrian 1/C. Mk 2
 ENGINE4 x Rolls-Royce Merlin T.24/2
 WEIGHTS
  Take-off weight29480 kg64993 lb
  Empty weight13800 kg30424 lb
 DIMENSIONS
  Wingspan31.09 m102 ft 0 in
  Length23.42 m77 ft 10 in
  Height5.94 m20 ft 6 in
  Wing area120.49 m21296.94 sq ft
 PERFORMANCE
  Max. speed500 km/h311 mph
  Cruise speed370 km/h230 mph
  Ceiling9140 m30000 ft
  Range w/max.fuel6680 km4151 miles

Avro 691 Lancastrian

Comments
arachni_name, e-mail, 02.01.2021 13:34

1

reply

Ricky Kampretos, e-mail, 16.01.2015 09:23

Bos, pesawat iki iso mabur suwe opo ora. Misale nek mabur saka London tekan Sydney butuh pirang jam lan ngisi tengki bensine nang endi wae? Danke.

reply

Don Hoggett, e-mail, 16.03.2011 17:22

In 1948 /9 as a National Service flight mech I was stationed at the Central Flying School Hulavington.

We had 2 Lancastrians named Airies and Minerfer these were used for advanced training with flights to Malta and Gibralta

Such happy times

Rgards

reply

Clerence, e-mail, 02.12.2010 06:49

@ Leo Rudnicki, I quess you mean the "Stardust" Plane, wich was lost in 1947, with its mysterious last radio call "Stendec".
My questions to this aircraft would be:
How long have they been in production, and how long have they been in use? The only information about this, I could find yet, was that they "haven t been in use very long, because other Types could carry much more passengers".
It also seems to me, that there are two versions of them - one modificated from the original "Lancaster" Bomber plane, where the "replaced nose" looks very replaced (e.g. that one you can see on the Wikipedia page about the plane), and the other one, like the one in the picture up here, wich looks like "originally built as a passenger plane", I would say, with a different, more "galant" nose? Does anyone have some Informations for me about that?

reply

Sqn Ldr Garretts, e-mail, 07.10.2009 18:05

I have a questions please How much petrol could it carry as a refueling aircraft?

reply

leo rudnicki, e-mail, 19.04.2009 05:31

A Lancastrian, flying over the Andes to Santiago, Chile, encountered the Jetstream, unknown at the time, and calculated that they were over the mountains, when they weren't. They lost altitude in bad visibility and became one with a glacier, unfound for decades until the glacier gave them back, further down the mountain. This type was a testbed for early jet engines, replacing the outboard Merlins and making a much faster aircraft.

reply

debbie, e-mail, 28.06.2007 23:00

I have an insructional course handbook from1943, lancaster aircraft avro type 683 Mk 1&11. Does anyone know what it might be worth?

reply

SERGIO, e-mail, 20.06.2007 05:03

ESTE ES EL AVION QUE SE LLAMABA SPENDEC QUE EN 1947 SE ESTRELLO EN EL VOLCAN TUPUNGATO Y EN 1998 SE ENCONTRARON LOS RESTOS DE ESTE MISMO AVION.

reply

David Lindbergh, e-mail, 10.05.2007 02:40

My comment is really a question - Is it likely that it can be established from any source now so many years later what radio navigation equipment was actually fitted to BSAA's Lancastrians in Argentina in 1946 /47?

reply

Max Watson, e-mail, 09.12.2006 01:36

I remember this a /c touching down at Goose Bay in 1946,I also remember a couple of occasions when they landed with one engine out, but they always made it ok

reply
