Avro 627 Mailplane
1931
Back to the Virtual Aircraft Museum
  Virtual Aircraft Museum / United Kingdom / Avro

Avro 627 Mailplane

One aircraft only, conversion of unfinished Avro 608 Hawk. Completed as Avro 627 Mailplane. Converted to Avro 654 in 1933.

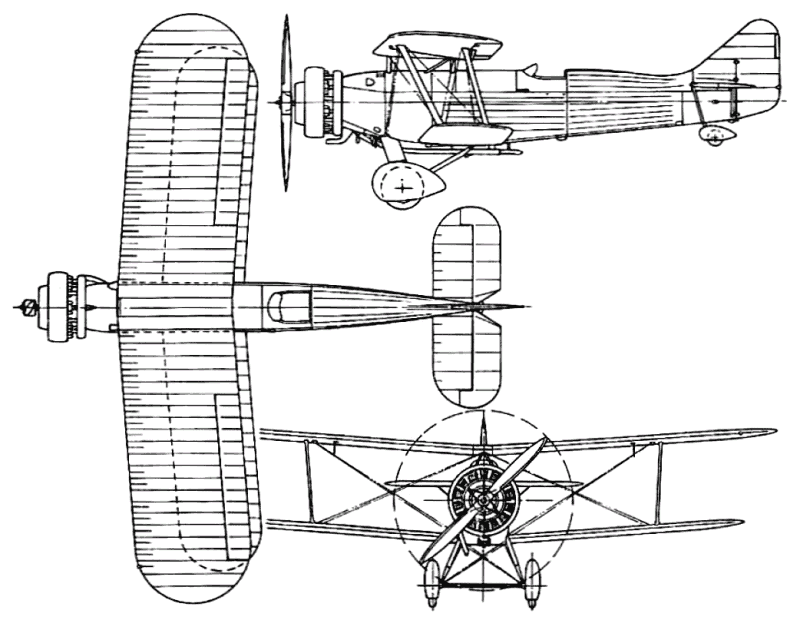

3-View
Avro 627 MailplaneA three-view drawing (800 x 630)


Specification
 MODELAvro 627
 ENGINE1 x 525hp Armstrong Siddeley Panther IIA
 WEIGHTS
    Take-off weight2338 kg5154 lb
    Empty weight1397 kg3080 lb
 DIMENSIONS
    Wingspan10.97 m36 ft 0 in
    Length9.40 m31 ft 10 in
    Height3.30 m11 ft 10 in
    Wing area35.40 m2381.04 sq ft
 PERFORMANCE
    Max. speed274 km/h170 mph
    Cruise speed237 km/h147 mph
    Ceiling5791 m19000 ft
    Range902 km560 miles
