Avro 618 Ten
1929 		Back to the Virtual Aircraft Museum
  Virtual Aircraft Museum / United Kingdom / Avro

Avro 618 Ten

There is no text information for this aircraft at the moment.

Avro 618 Ten


Specification
 ENGINE3 x 240hp Armstrong Siddeley Lynx IVB or IVC
 WEIGHTS
    Take-off weight4812 kg10609 lb
    Empty weight2733 kg6025 lb
 DIMENSIONS
    Wingspan21.72 m71 ft 3 in
    Length14.48 m47 ft 6 in
    Height3.89 m12 ft 9 in
    Wing area71.72 m2771.99 sq ft
 PERFORMANCE
    Max. speed185 km/h115 mph
    Cruise speed161 km/h100 mph
    Ceiling4877 m16000 ft
    Range644 km400 miles

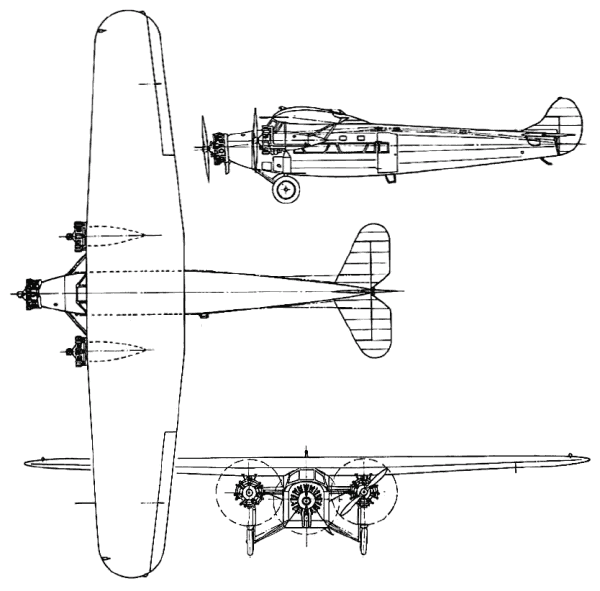

3-View
Avro 618 TenA three-view drawing (600 x 591)
