| There is no text information for this aircraft at the moment.

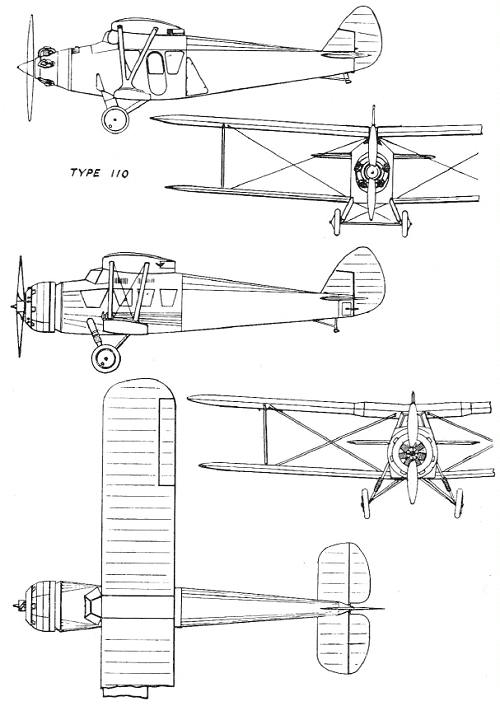

 | A three-view drawing (500 x 706) |
| MODEL | Bristol 110A |
| CREW | 1 |
| PASSENGERS | 4 |
| ENGINE | 1 x 220hp Bristol Titan |
| WEIGHTS |
| Take-off weight | 1979 kg | 4363 lb |
| Empty weight | 1058 kg | 2333 lb |
| DIMENSIONS |
| Wingspan | 12.34 m | 41 ft 6 in |
| Length | 10.21 m | 34 ft 6 in |
| Height | 3.10 m | 10 ft 2 in |
| Wing area | 36.14 m2 | 389.01 sq ft |
| PERFORMANCE |
| Max. speed | 201 km/h | 125 mph |
| Barry, 20.06.2016 16:33 Originally conceived for the Neptune engine this four passenger cabin plane suffered a landing accident in February 1930 and as no sales had been made the plane was scrapped. reply | | W. Krouwel, e-mail, 04.08.2009 14:15 Bristol Titan?
A New one on me but fits Bristol's nomenclature pretty well.... reply |
|
