Bristol 123
1934
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / United Kingdom / Bristol

Bristol 123

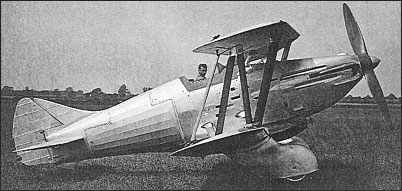

The Type 123 was built as a private venture to meet the requirements of Specification F.7/30, a 695hp Rolls- Royce Goshawk III steam-cooled engine being provided by the Air Ministry. Of high-tensile steel construction with fabric-covered wings, rear fuselage and tail assembly, the Type 123 carried an armament of four fuselage-mounted 7.7mm Vickers machine guns, and was first flown on 12 June 1934, having been delayed by difficulties with the engine cooling system. Subsequently the Type 123 was found to suffer from lateral instability at high speed and further development was abandoned.

3-View

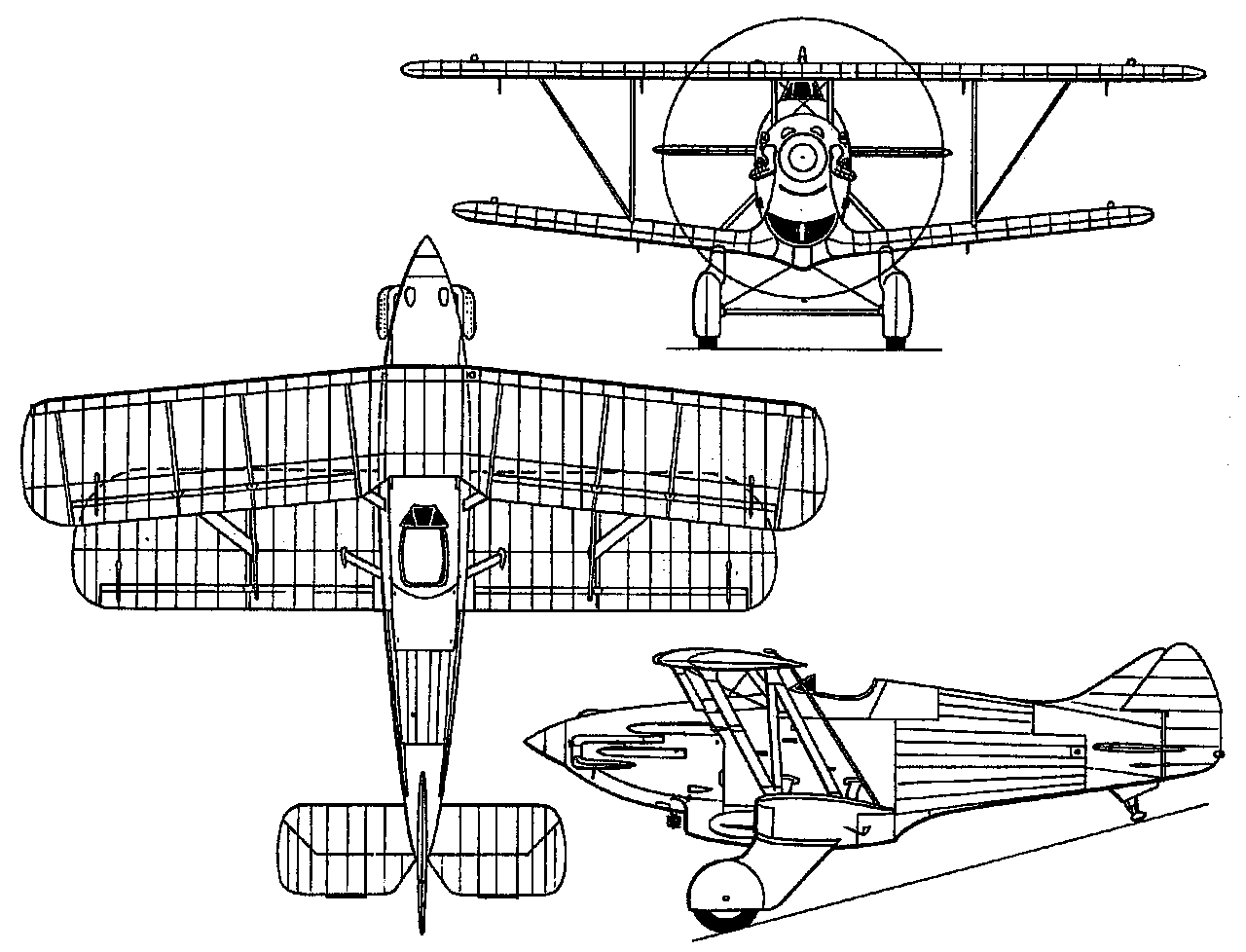

Bristol 123A three-view drawing (1280 x 978)


Specification
 WEIGHTS
    Take-off weight2149 kg4738 lb
    Empty weight1497 kg3300 lb
 DIMENSIONS
    Wingspan9.02 m30 ft 7 in
    Length7.67 m25 ft 2 in
    Height2.89 m10 ft 6 in
    Wing area23.04 m2248.00 sq ft
 PERFORMANCE
    Max. speed378 km/h235 mph
