Bristol Babe
1919
Back to the Virtual Aircraft Museum
  Virtual Aircraft Museum / United Kingdom / Bristol

Bristol Babe

There is no text information for this aircraft at the moment.

3-View

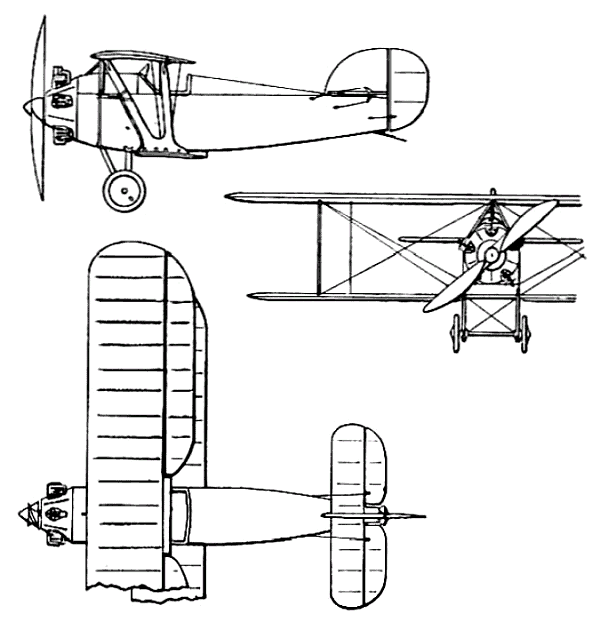

Babe IA three-view drawing of Babe I (600 x 622)


Specification
 CREW1
 ENGINE1 x 45hp Viale
 WEIGHTS
    Take-off weight310 kg683 lb
    Empty weight209 kg461 lb
 DIMENSIONS
    Wingspan5.99 m20 ft 8 in
    Length4.55 m15 ft 11 in
    Height1.75 m6 ft 9 in
    Wing area10.03 m2107.96 sq ft
 PERFORMANCE
    Max. speed137 km/h85 mph
    Ceiling3048 m10000 ft

3-View

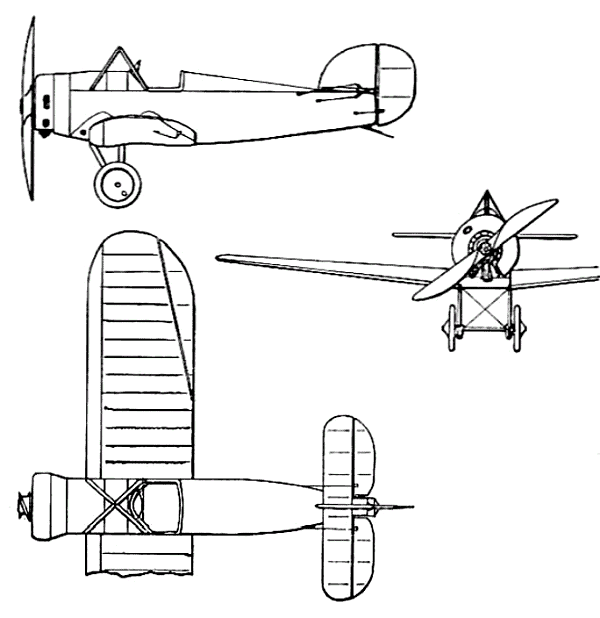

Babe IIIA three-view drawing of Babe III (600 x 618)

Comments
Barry, 10.11.2015

Another Frank Barnwell design for a small low cost sporting plane. There were only two ever built and flown. The Babe I which because of a shortage of power plants had to resort to a pre-war Viale 35 h.p. 5 cylinder engine which had a tendency to overheat after about 30 minutes flying time was replaced by a 60 h.p. Le Rhone 7B2. This and the second aeroplane to fly had this power plant, and became known as the Babe III. The still born Babe II was to have the Ounce engine. A radical plan to change the III into a mono plane never reached fruition. One can only presume with all the surplus war stock available the selling of a new sport plane was not going to be easy and so it was not!
