Bristol 90 Berkeley
1925
Back to the Virtual Aircraft Museum
  BOMBERVirtual Aircraft Museum / United Kingdom / Bristol

Bristol 90 Berkeley

There is no text information for this aircraft at the moment.

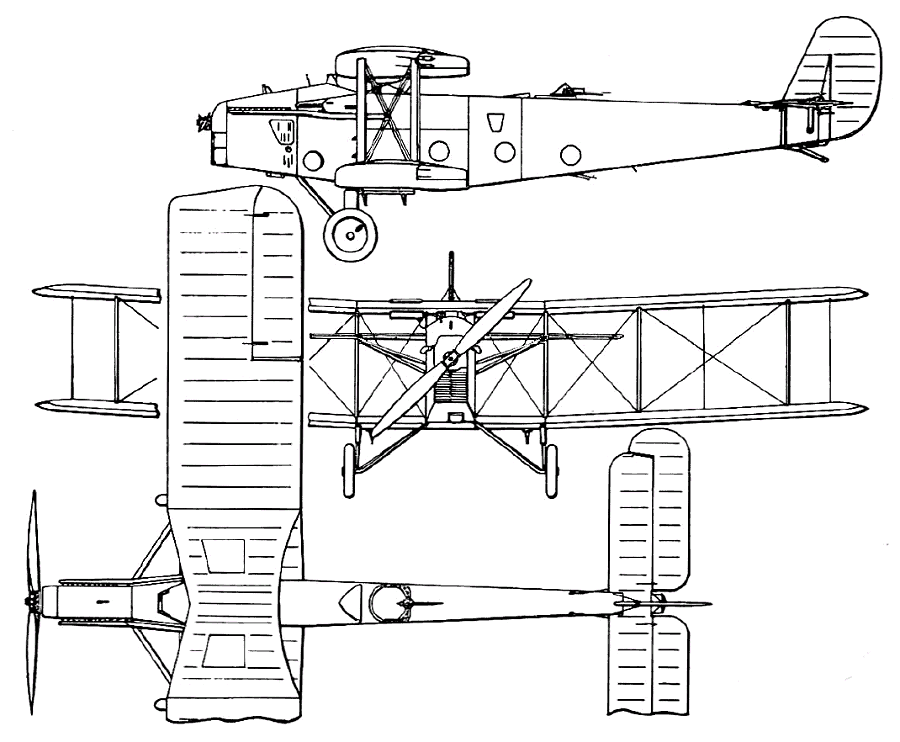

3-View
Bristol 90 BerkeleyA three-view drawing (900 x 742)


Specification
 ENGINE1 x 650hp Rolls-Royce Condor III
 WEIGHTS
    Take-off weight3690 kg8135 lb
    Empty weight2361 kg5205 lb
 DIMENSIONS
    Wingspan17.65 m58 ft 11 in
    Length14.48 m48 ft 6 in
    Height4.37 m14 ft 4 in
    Wing area91.51 m2985.00 sq ft
 PERFORMANCE
    Max. speed193 km/h120 mph
    Ceiling5456 m17900 ft
    Range1385 km861 miles
 ARMAMENT3 x 7.7mm machine-guns, 1 x 250kg or 2 x 100kg bombs

Comments
Barry, 04.04.2016

Built to specification 26/23 along with the Handley Page Handcross, it was decided by the R.A.F. that there was no future in single engined night bombing after the Avro Aldershot (q.v.). Only three were completed.
