Bristol Ten-seater / Brandon
1921
Back to the Virtual Aircraft Museum
  Virtual Aircraft Museum / United Kingdom / Bristol

Bristol Ten-seater / Brandon

There is no text information for this aircraft at the moment.

Bristol Ten-seater / Brandon


Specification
 MODELBristol Brandon
 CREW2
 PASSENGERS8
 ENGINE1 x 425hp Bristol Jupiter IV
 WEIGHTS
    Take-off weight3223 kg7106 lb
    Empty weight1984 kg4374 lb
 DIMENSIONS
    Wingspan16.48 m54 ft 1 in
    Length12.88 m42 ft 3 in
    Height4.37 m14 ft 4 in
    Wing area82.68 m2889.96 sq ft
 PERFORMANCE
    Max. speed185 km/h115 mph
    Ceiling2591 m8500 ft

3-View
Bristol Express FreighterA three-view drawing of Bristol Express Freighter (800 x 652)

Bristol Ten-seater / Brandon

Comments
Barry, 04.04.2016

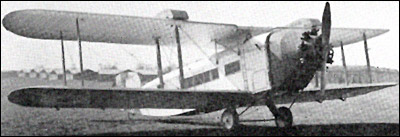

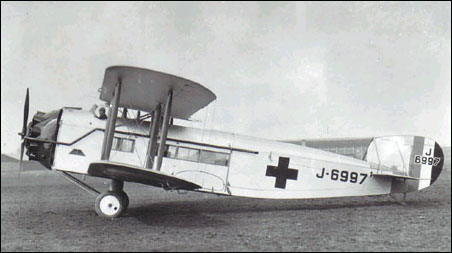

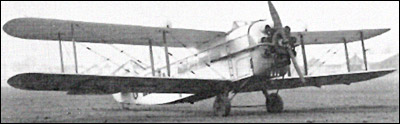

Only three built, two commercial as the 10 Seater with one pilot and 9 passengers. The first used a 450 h.p Napier Lion the second (illustrated) the preferred Bristol Jupiter. The R.A.F. bought one as the Brandon with greater chord wings it was based at R.A.F. Halton as an air ambulance.

Kent Vernon, 06.08.2013

I have a nice postcard of a Bristol Jupiter express freight registration G-EBEV. Does anyone have more information on this company, did it expand or go into liquidation. How many aircraft were in the fleet, where were they based?The card is postmarked 1927 thanks in anticipation.
