Sopwith Snapper

Designed in parallel with the Snark triplane and similarly intended to meet the requirements of the RAF's Type I specification, the Snapper single-bay staggered equi-span biplane was destined to be the last fighter to bear the Sopwith name before the company went into liquidation in September 1920. Three prototypes of the Snapper were ordered on 6 June 1918, and, although originally designed with a plywood monocoque fuselage, all three aircraft were completed with conventional fabric-covered fuselages. Powered by a 320hp A.B.C. Dragonfly I nine-cylinder radial engine and carrying the standard pair of synchronised 7.7mm machine guns, the first Snapper performed manufacturer's trials in the second half of July 1919, being delivered to Martlesham Heath for official trials on 1 August. Flight test was somewhat spasmodic owing to recurring difficulties with the engine, but all three Snappers were at the RAE, Farnborough, in mid-1920. It is presumed that trials continued until the decision was taken to discontinue further attempts to rectify the engine's problems.

3-View

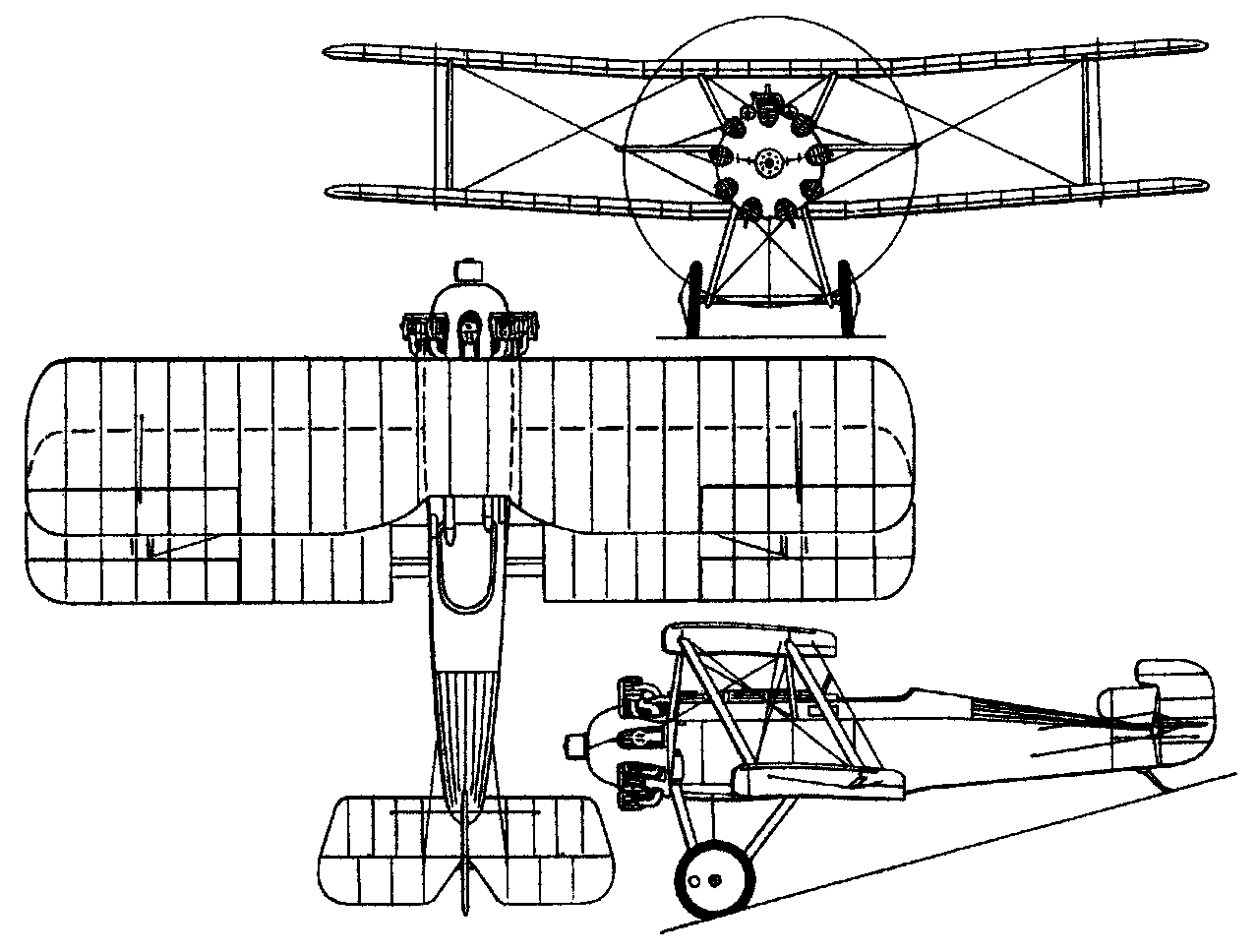

Sopwith SnapperA three-view drawing (1278 x 968)


Specification
 WEIGHTS
    Take-off weight993 kg2189 lb
    Empty weight663 kg1462 lb
 DIMENSIONS
    Wingspan8.53 m28 ft 0 in
    Length6.27 m21 ft 7 in
    Height3.05 m10 ft 0 in
    Wing area27.13 m2292.02 sq ft
 PERFORMANCE
    Max. speed225 km/h140 mph
